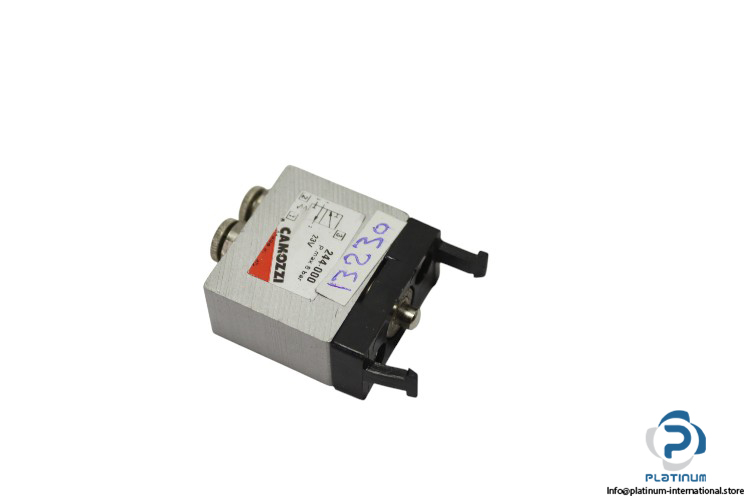

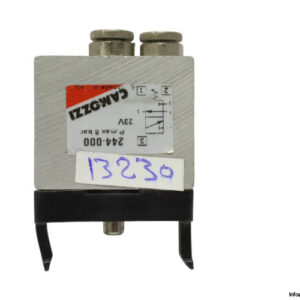

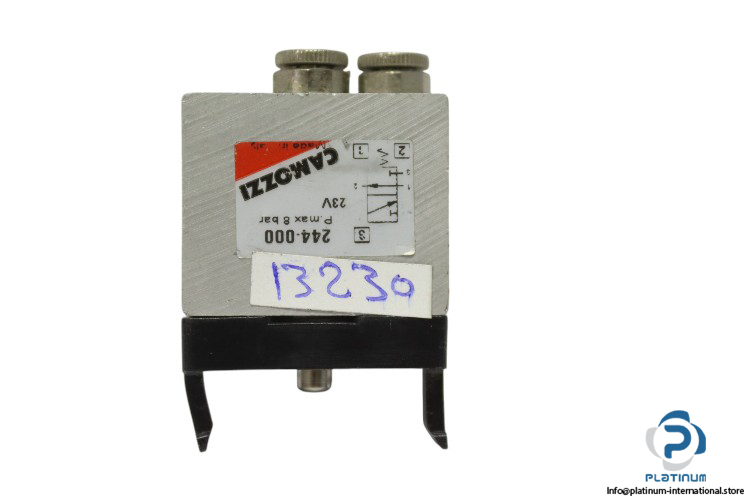

Camozzi 244-000 Manual Valve
The Camozzi 244-000 Manual Valve from Series 2 offers efficient control with a 3/2-way NO configuration. Designed for reliable pneumatic applications, it operates within a pressure range of 2 to 8 bar and delivers a flow rate of 60 NL/min. This valve is built with an aluminium body and features flush mounting for compact installations.
Manufacturer: CAMOZZI
Type: Manual Valve
Series: 2
Model: 244-000
Technical Data:
- Function: 3/2-way NO
- Type of Actuation: Manually
- Operating Pressure: 2…8 bar
- Flow Rate: 60 NL/min
- Fluid: Air
- Temperature: 0…+50°C
- Body Material: Aluminium
- Connection Type: 4mm cartridge push-in pneumatic port
- Mounting Mode: Flush mounting
