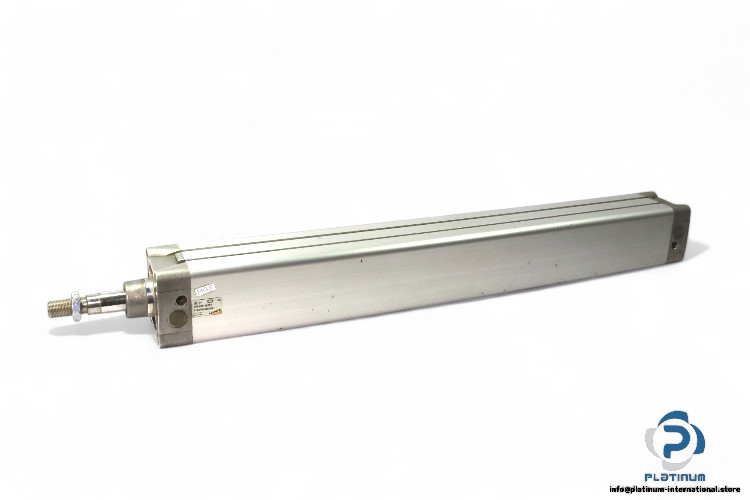

CAMOZZI ISO Cylinder 61M2P080A0650S01

The CAMOZZI ISO Cylinder 61M2P080A0650S01 is designed for use in pneumatic systems requiring a reliable, high-performance actuator. This double-acting cylinder features a robust design and operates using compressed air, providing precise movement with a stroke length of 650 mm and a bore diameter of 80 mm.

Manufacturer: CAMOZZI

Model: 61M2P080A0650S01

Alternative Model: 579Y91118507

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 80 mm
• Stroke: 650 mm
• Bore x Stroke: 80 x 650 mm
• Rod Diameter: 25 mm
• Frame Dimensions: 92 x 815 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
