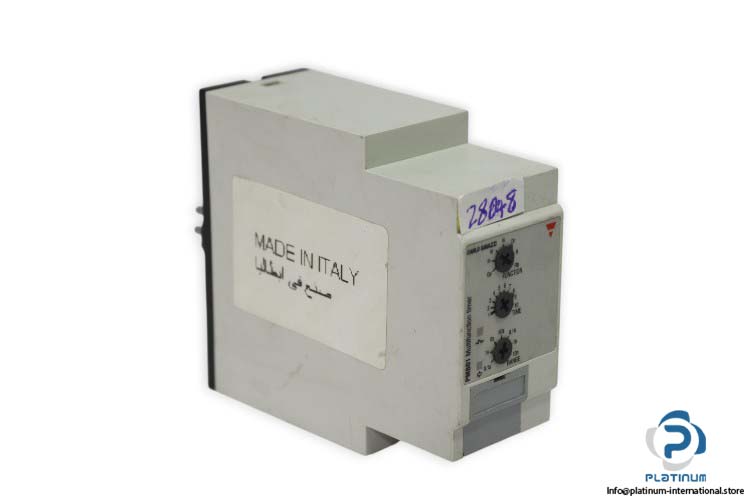

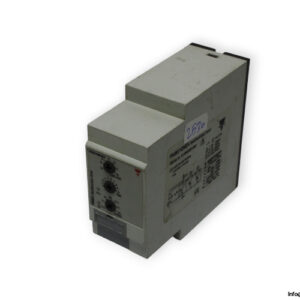

Manufacturer: CARLO GAVAZZI

Type: Multifunction Timer

Model: PMB01DM24

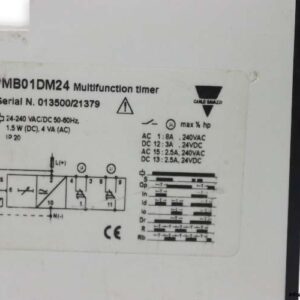

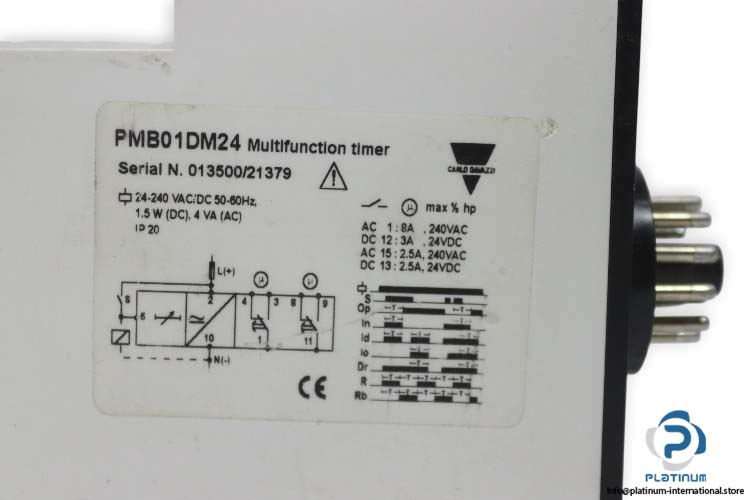

Serial No.: 013500/21379

The CARLO GAVAZZI PMB01DM24 is a compact, high-performance multifunction timer designed for precise time control in industrial and automation systems. It supports a wide operational voltage range and offers 7 configurable time ranges, making it suitable for a broad array of applications. This DIN rail-mountable timer is engineered for durability with IP20 protection and features high contact ratings to ensure reliable switching performance in demanding environments.

Technical Information

• Rated Operational Voltage: 24 / 240 V AC/DC, +10%/-15%, 45 / 65 Hz
• Rated Operational Power: 4 VA, 1.5 W
• Power ON Delay: ‰¤ 100 ms
• Degree of Protection: IP 20
• Tightening Torque Max.: 0.5 Nm
• Rated Insulation Voltage: 250 V AC
• Contact Ratings:
  • AC 1: 8 A @ 240 V AC
  • DC 12: 3 A @ 24 VDC
  • AC 15: 2.5 A @ 240 VAC
  • DC 13: 2.5 A @ 24 VDC

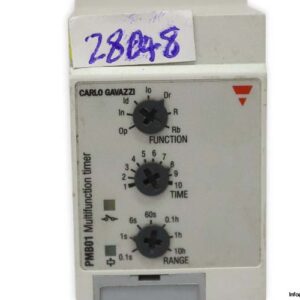

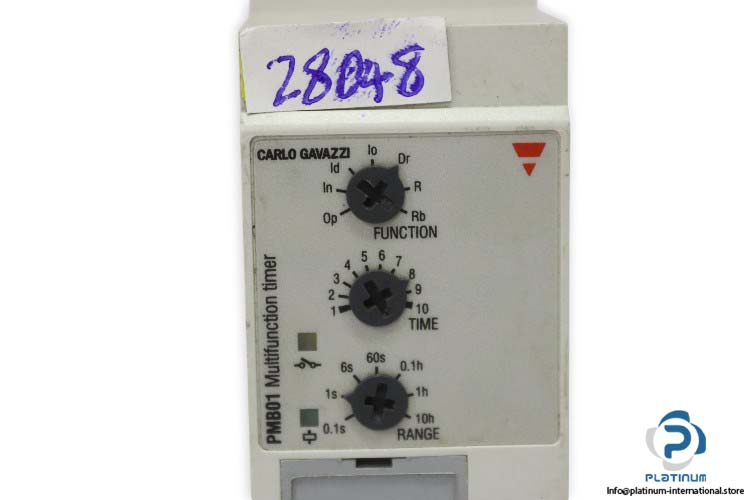

• Time Ranges: 7 Ranges (0.1s / 10h)
• Operating Temperature: -20 / 60°C
• Dimensions: 22.5 x 80 x 99.5 mm
