Manufacturer: Carlo Gavazzi

Type: Multifunction Timer

Model: PMB01DM24

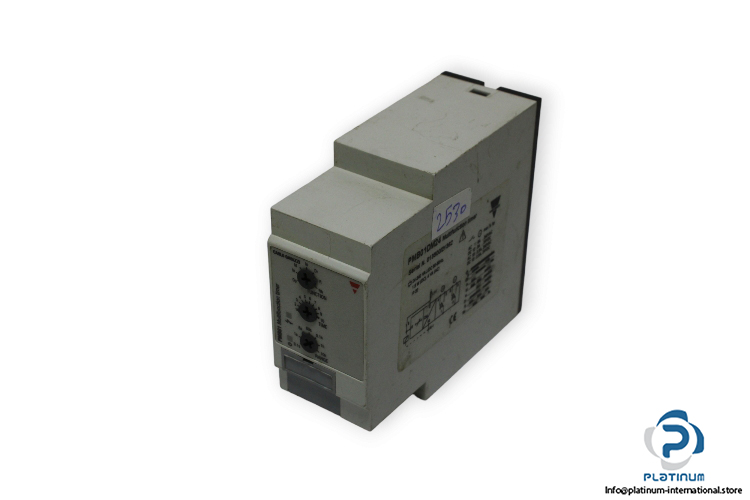

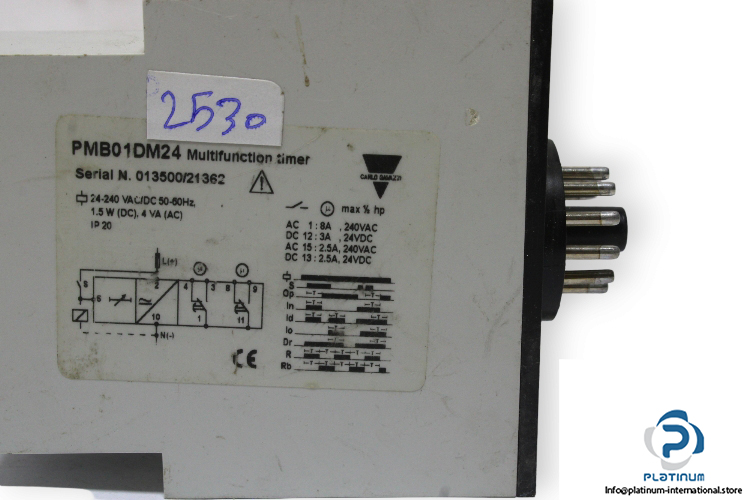

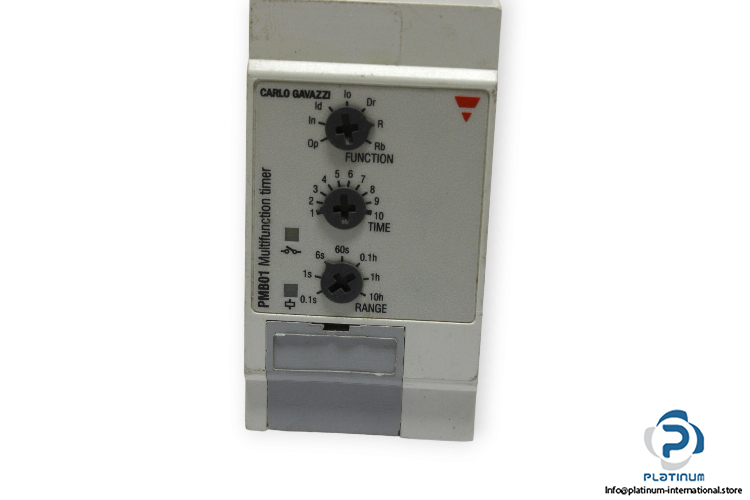

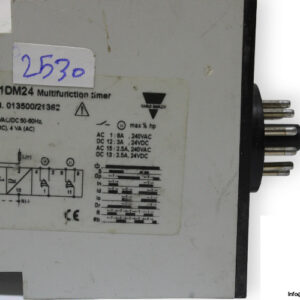

The Carlo Gavazzi PMB01DM24 is a compact and highly reliable multifunction timer designed for industrial automation applications. With a wide voltage input range and precise time control features, this unit supports 7 selectable time ranges from 0.1 seconds to 10 hours. It is built with an IP20-rated housing and offers excellent durability and safety with a rated insulation voltage of 250 V AC. Ideal for timing, control, and delay applications in various systems, this timer is engineered for flexible integration and robust performance.

Technical Information

• Rated Operational Voltage: 24 / 240 V AC/DC, +10%/-15%, 45 / 65 Hz
• Rated Operational Power: 4 VA, 1.5 W
• Power ON Delay: ‰¤ 100 ms
• Degree of Protection: IP 20
• Tightening Torque Max.: 0.5 Nm
• Rated Insulation Voltage: 250 V AC
• Contact Ratings:
  • AC 1: 8 A @ 240 V AC
  • DC 12: 3 A @ 24 VDC
  • AC 15: 2.5 A @ 240 VAC
  • DC 13: 2.5 A @ 24 VDC
• Time Ranges: 7 Ranges (0.1s / 10h)
• Operating Temperature: -20 / 60°C
• Dimensions: 22.5 x 80 x 99.5 mm
