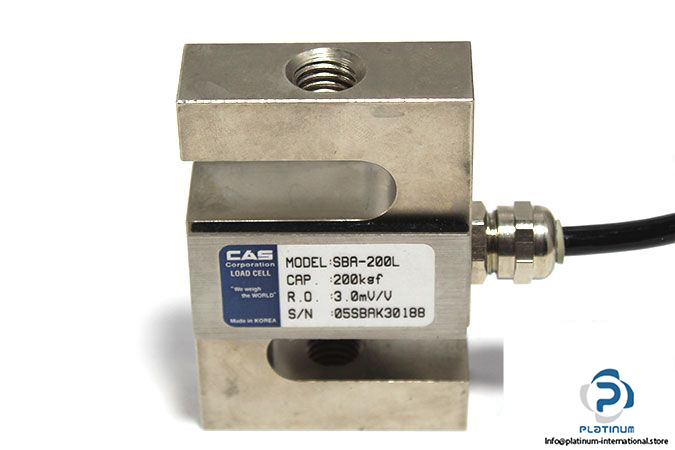

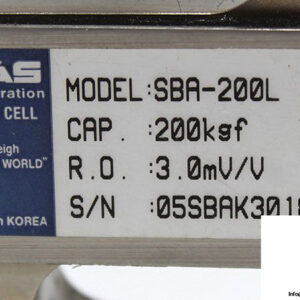

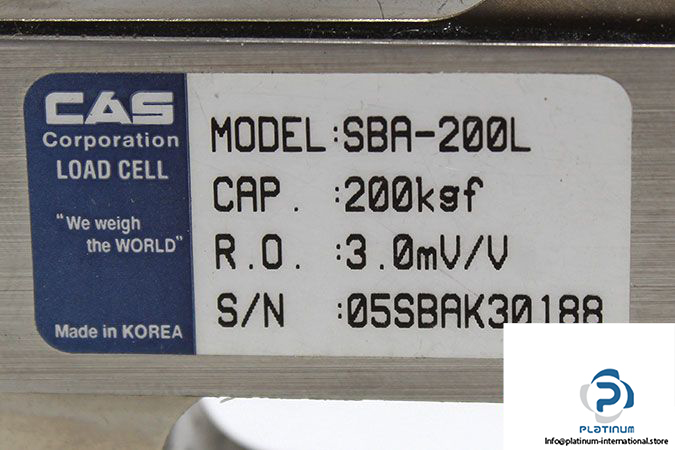

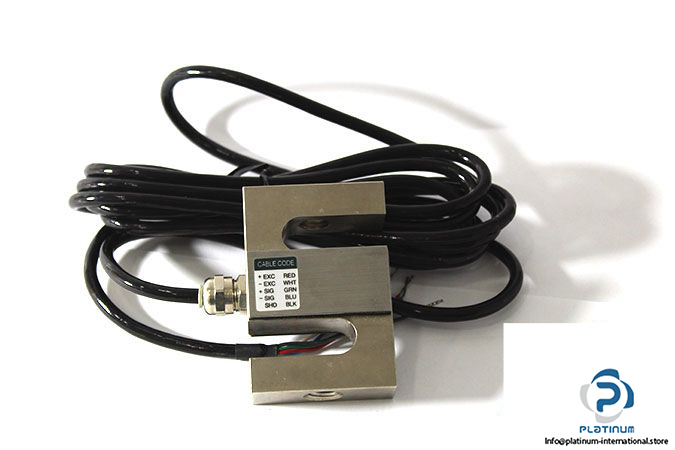

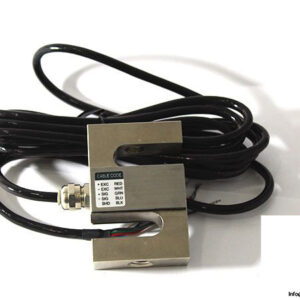

CAS SBA-200L S-Beam Load Cell
The CAS SBA-200L is a precision S-beam load cell designed for tension and compression force measurement. Built with anodized aluminum, it offers excellent durability, stability, and accuracy for industrial weighing and force monitoring systems. The unit is OIML C3 approved and compatible with a wide range of weighing indicators and control systems, ensuring reliable performance and IP65 protection.
Manufacturer: CAS
Type: S-Beam Load Cell
Model: SBA-200L
Technical Information
- OIML Approval: C3 (OIML R60)
- Compatibility: Compatible with Other Sources
- Protection Class: IP65
- Load Type: Tension Type Load Cell
- Option: Pound (LB) Version Available
- Maximum Weight Limit (Emax): 200 kg
- Rated Output: 3.0 ± 0.3 mV/V
- Excitation Voltage: 10 V
- Max. Excitation Voltage: 15 V
- Input Resistance: 400 ± 25 „¦
- Output Resistance: 350 ± 3.5 „¦
- Operating Temperature Range: -30 / +80 °C
- Element Material: Anodized Aluminum
- Accuracy Class: D3
- Protection Class: IP65
