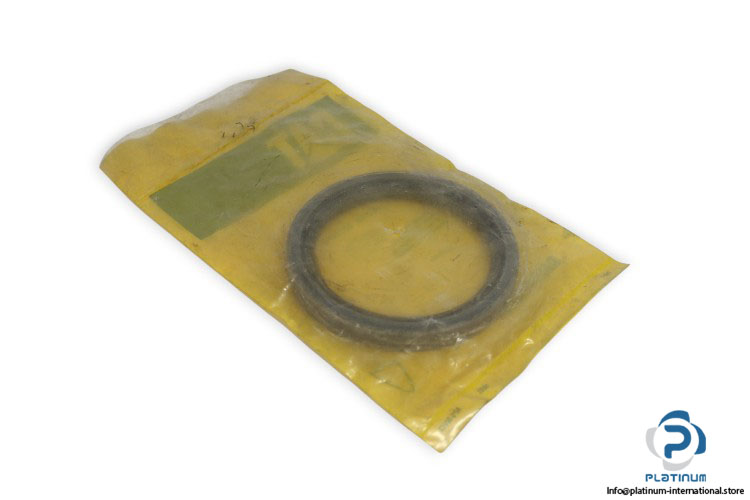

Caterpillar 6V7196 Oil Seal

The Caterpillar (CAT) 6V7196 Oil Seal is a high-quality sealing component engineered to ensure leak prevention and reliable protection in demanding industrial and heavy equipment applications. Designed for durability, it provides resistance against oil, grease, hydraulic fluids, and external contaminants, making it a trusted solution for Caterpillar machinery and hydraulic assemblies.

• Manufacturer: Caterpillar (CAT)
• Type: Seal (Oil Seal / O-Ring style)

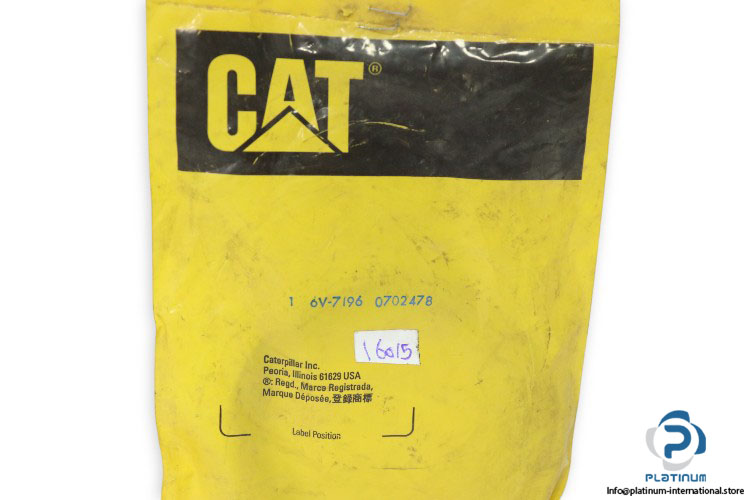

• Part Number: 6V7196
• Code: 0702478

Technical Information

• Fluids: Compatible with mineral oils, hydraulic fluids, and lubricants
• Function: Serves as a shaft or housing seal to prevent leakage of oil, grease, or hydraulic fluid; protects against ingress of dust, dirt, and contaminants; maintains pressure integrity in assemblies
• Material & Build: Elastomer sealing element, may be reinforced with metal case or fabric insert
• Typical Use: Engines, transmissions, hydraulic pumps, final drives, axle assemblies
• Operating Range: Pressure up to 0.5“1 bar, Temperature -40 °C to +120 °C
• Inner Diameter: 81 mm
• Outer Diameter: 102 mm
• Thickness: 13 mm
