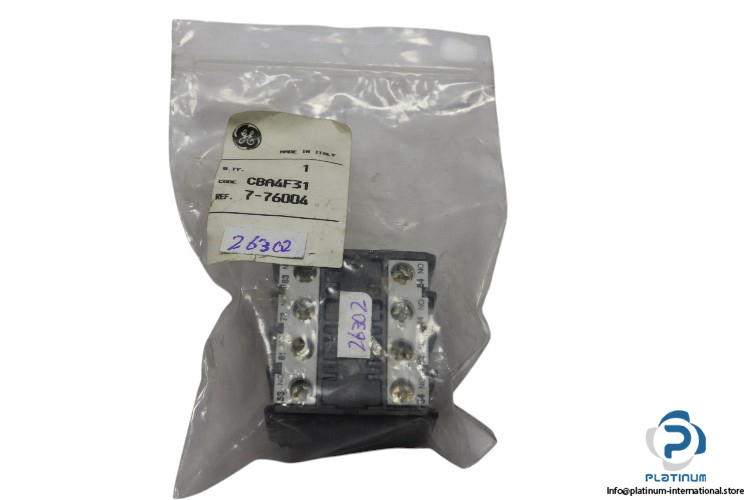

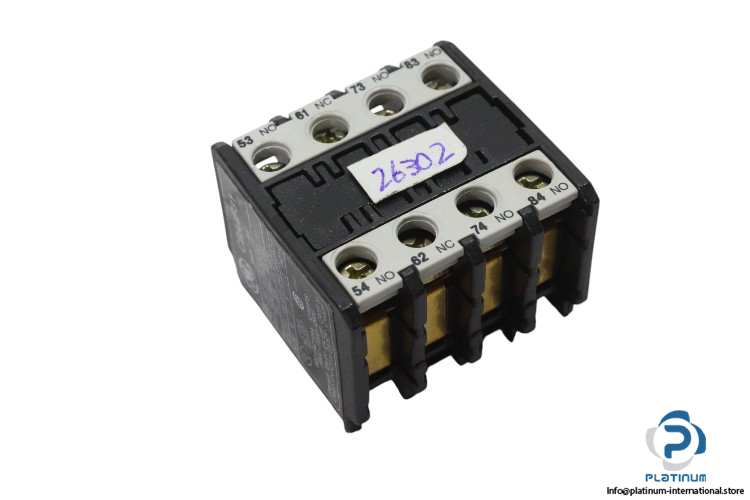

CBA4F31 Auxiliary Contact Block
The CBA4F31 Auxiliary Contact Block (Part No. 7-76004) is designed for integration into control circuits to provide feedback or signaling functions. It offers high electrical endurance and is rated for use across a wide range of AC voltages.
- Type: Auxiliary Contact Block
- Model: CBA4F31
- Part No.: 7-76004
Technical Information:
- Thermal Test Current (Ith): 20A
- Rated Insulation Voltage (Ui): 690V
- Rated Operational Voltage (Ue):
- 110/120V AC: 6A
- 220/240V AC: 5A
- 500V AC: 2A
