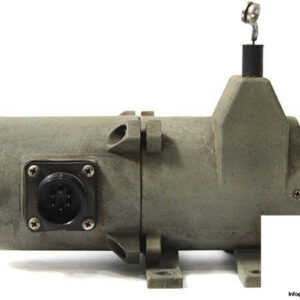

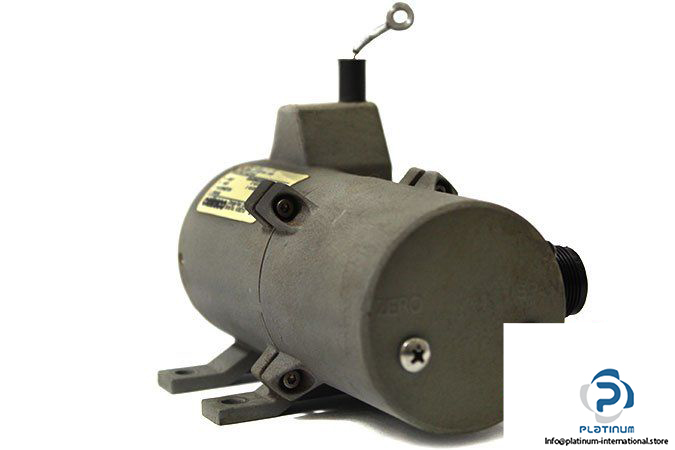

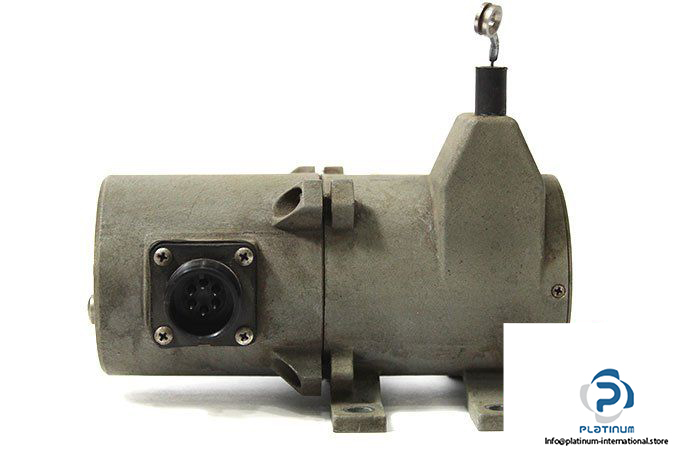

CELESCO PT8420-0060-111-1110 CABLE ACTUATED SENSOR

This high-precision cable actuated sensor by Celesco is engineered for reliable linear position measurement in demanding environments. With IP67 protection and essentially infinite resolution, it ensures accurate performance across a wide temperature range and long measurement strokes.

Manufacturer: CELESCO
Type: Cable Actuated Sensor

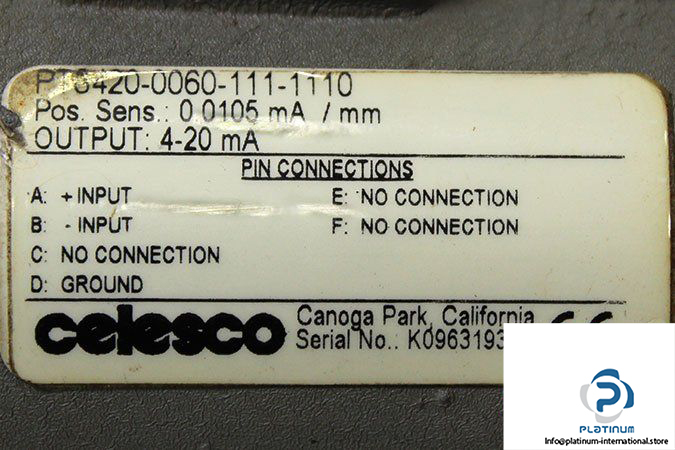

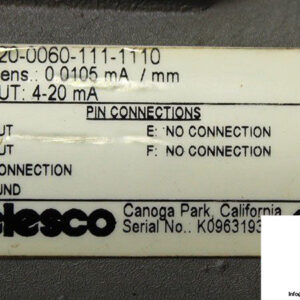

Model: PT8420-0060-111-1110
S No.: K0963193

Technical Information

• Resolution: Essentially Infinite
• Input Voltage: 8 / 34 V DC
• Repeatability: ± 0.05% Full Stroke
• Position Sensor: 0.0105 mA/mm
• Output Current: 4-20 mA
• Full Stroke, min: 1524 mm / 60 in.
• Electrical Connection: 6-Pin Plastic Connector
• Measuring Cable: Ø.034-inch nylon-coated stainless steel rope
• Cable Guide Options: Standard Cable Guide
• Protection Proof: IP67
• Temperature: -40 / 90 °C
