TEM ELECTRIC MOTOR

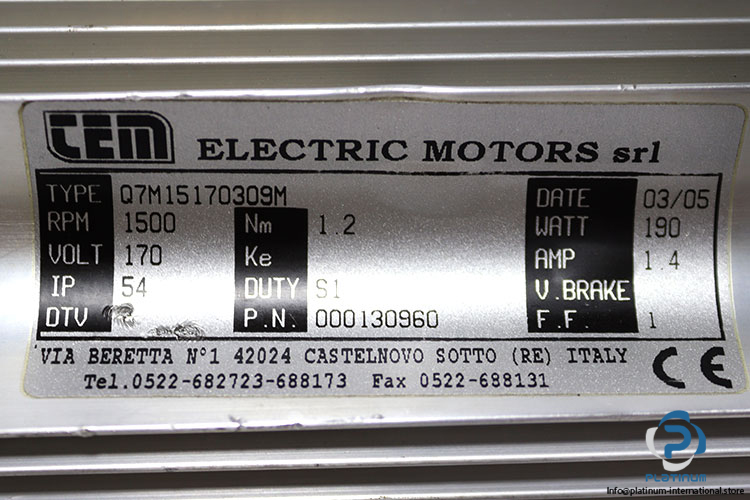

The TEM Electric Motor (Model: Q7M15170309M, P.N: 000130960) is designed for reliable operation in a variety of industrial applications. With a rated voltage of 170V, rated speed of 1500 rpm, and a rated power of 190W, this motor delivers efficient performance with a rated torque of 1.2 Nm and a rated current of 1.4A. It is built for continuous duty (S1) and features a protection class of IP54, making it ideal for environments that require moderate protection from dust and water ingress.

Manufacturer: TEM

Type: Electric Motor

Model: Q7M15170309M

Part No.: 000130960

Technical Specifications

• Rated Voltage: 170 V
• Rated Speed: 1500 rpm
• Rated Torque: 1.2 Nm
• Rated Power: 190 W
• Rated Current: 1.4 A
• F.F. (Frame Form): 1
• Duty: S1 (Continuous duty)
• Protection Class: IP54
