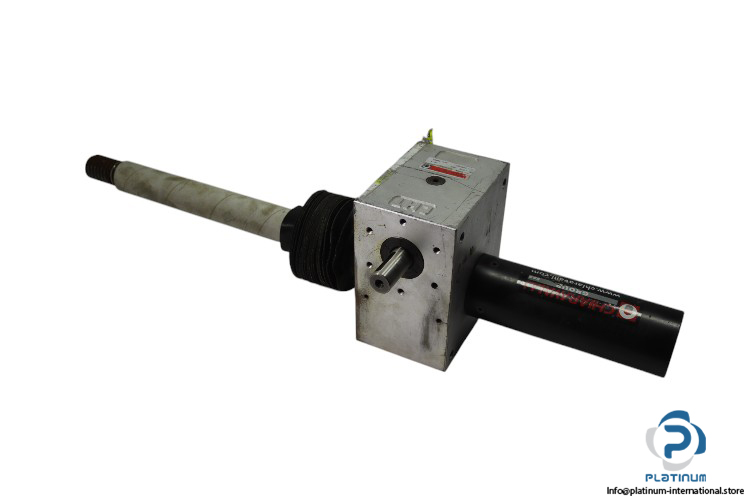

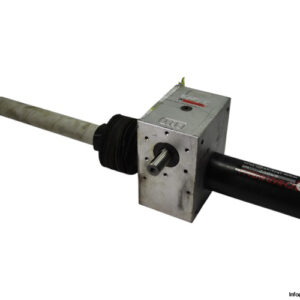

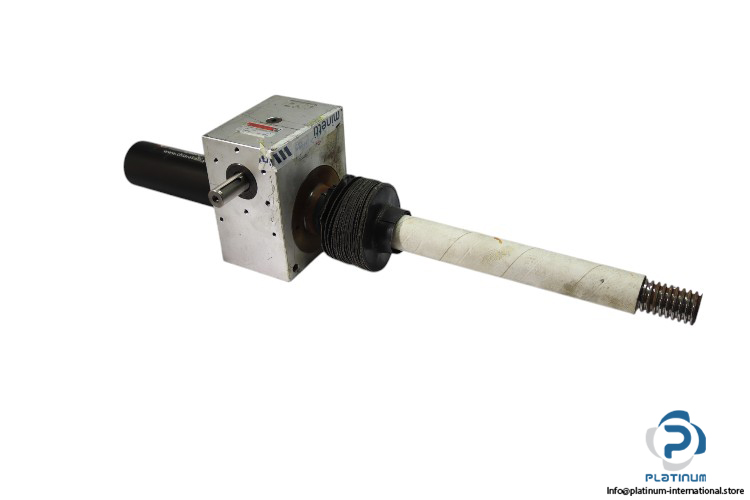

CHIARAVALLI CHS4 Screw Jack

The CHIARAVALLI CHS4 Screw Jack is a high-performance lifting and positioning device designed for industrial applications requiring precision, strength, and reliability. Built with a durable G25 cast iron housing, it offers multiple gear ratios to accommodate different speed and load requirements. Engineered for stability, it operates efficiently across a wide temperature range.

• Manufacturer: CHIARAVALLI
• Type: Screw Jack
• Model: CHS4

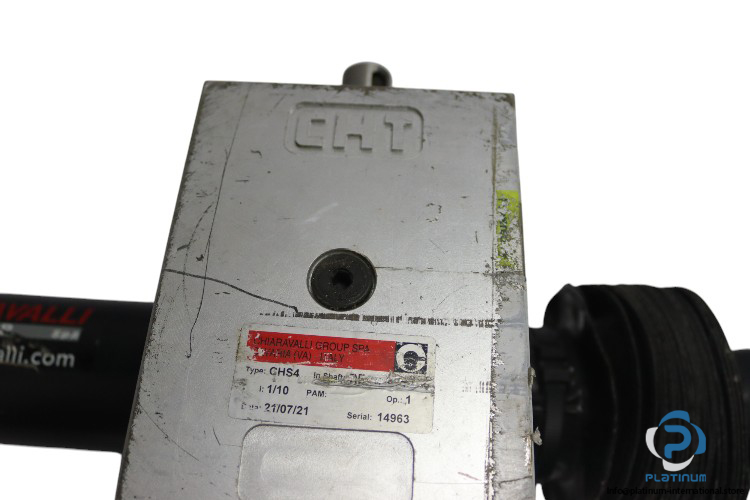

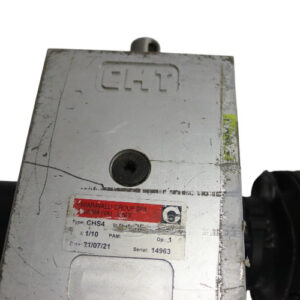

• Serial No: 14963

Technical Specifications

• Load daN (Kg): 5000
• TPN Screw Diameter x Pitch: 40 x 7 mm
• Gear Ratios:
  • Fast Speed: 5:1
  • Normal Speed: 10:1
  • Slow Speed: 30:1
• Stroke per Input Revolution:
  • Fast Speed: 1.40 mm
  • Normal Speed: 0.70 mm
  • Slow Speed: 0.23 mm
• Case Material: G25
• Grease Type: AGIP GR MU EP2
• Operating Temperature: -5 to +80° C
