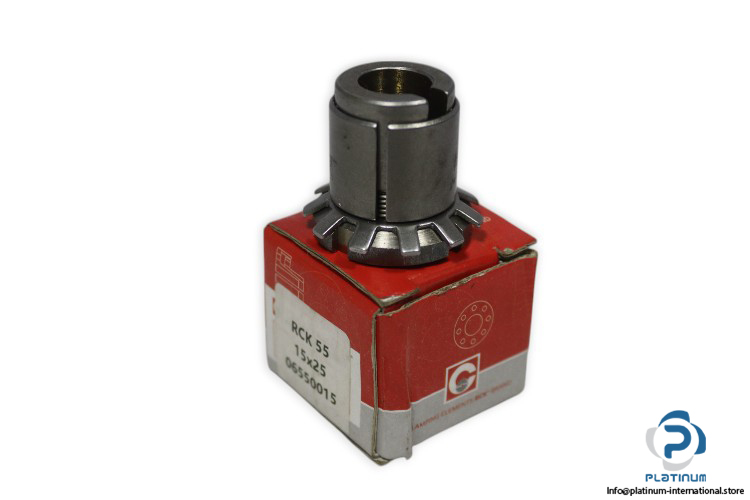

Chiaravalli RCK55 Shaft Clamping Element (Self-Centring)

The Chiaravalli RCK55 Shaft Clamping Element is a high-quality self-centring clamping component designed for precise and secure shaft positioning in industrial machinery. Its compact design and high clamping pressure ensure reliable performance and optimal torque transmission.

Manufacturer: Chiaravalli

Type: SHAFT CLAMPING ELEMENT (SELF CENTRING)

Model: RCK55

Part No.: 06550015

Technical Information:

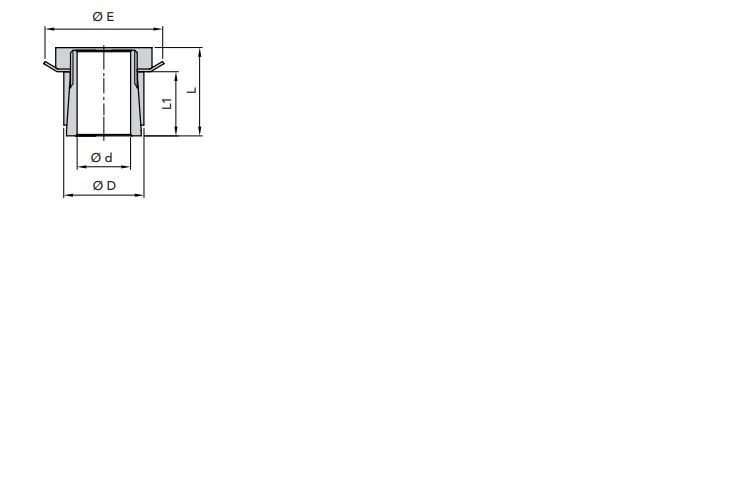

Inner Diameter (d): 15 mm

Outer Diameter (D): 25 mm

Overall Length (L): 31 mm

Overall Length (without screws, L1): 23 mm

ØE: 32 mm

Max. Torque: 70 Nm

Clamping Pressure on Shaft: 80 N/mm²

Clamping Pressure on Hub: 45 N/mm²

This Chiaravalli RCK55 shaft clamping element ensures efficient and secure clamping for precise shaft positioning in industrial machinery, providing optimal torque transmission and reliable performance.
