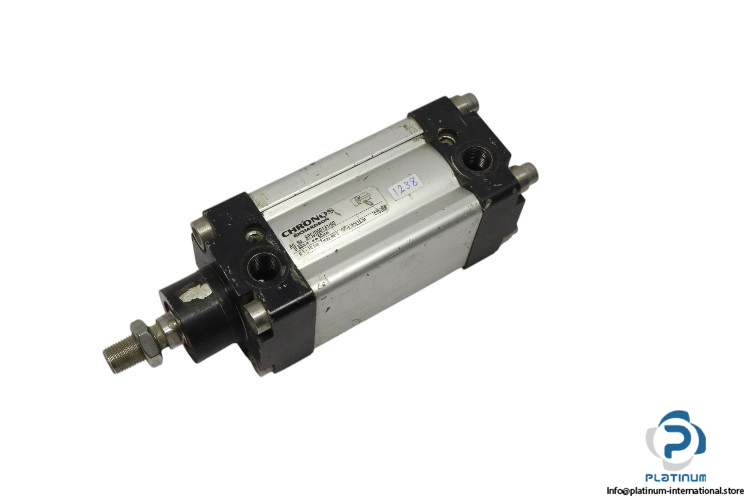

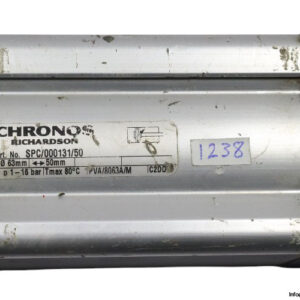

CHRONOS ISO Cylinder SPC/00013/50
The CHRONOS ISO Cylinder SPC/00013/50 is designed for high-performance pneumatic applications. Featuring a bore diameter of 63 mm and a stroke of 50 mm, this cylinder provides reliable and efficient operation. With a pneumatic connection of G 3/8 and an operating pressure range of 1 to 16 bar, it ensures versatile use in various industrial systems.
Manufacturer: CHRONOS
Model: SPC/000131/50
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 50 mm
- Bore x Stroke: 63 x 50 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 205 mm
- Pneumatic Connection: G 3/8
- Pressure: 1 / 16 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
