Manufacturer: CJAC

Type: SELF COMPENSATION SHOCK ABSORBER

Series: AC-S

Model: AC1007-S

Material

  Outer Pipe: Aisi1215 And Stkm11A Oxidized Black

  Piston Rod: Hard Chromium Plating Treatment And Special Seals For Longer Lifespan

  Piston: Adopt Materials With Excellent Wear Resistance To Ensure Long-Lasting And Stable Cushioning

Speed Range: 0.3 … 5.0 m/s

Max. Absorbed Energy: 6 Nm

Absorbed energy per hour: 12,400 Nm

Max. Effective Weight: 12 kg

Max.impact speed: 0.3 – 3.5 m/s

Stroke Length: 7 mm

Rod Diameter: 3 mm

Piston Diameter: 8.6 mm

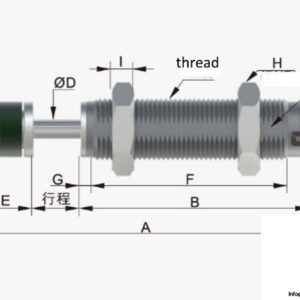

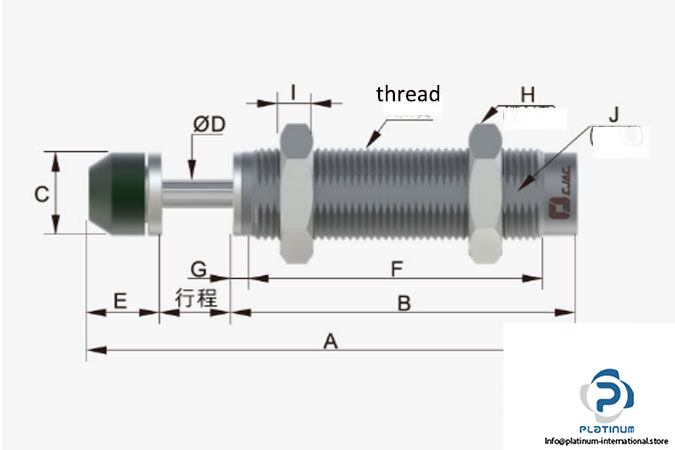

Total length: 62.6 mm

Diameter and Step for Threaded Surface: M10 X1.0

Energy capacity: 21,000 in-lbs/Cycle … 68,250 in-lbs/Cycle

Temperature Range: -10°C … 80 °C
