Manufacturer: CLAUDIUS PETERS / Parker

Type: Axial Piston Variable Pump

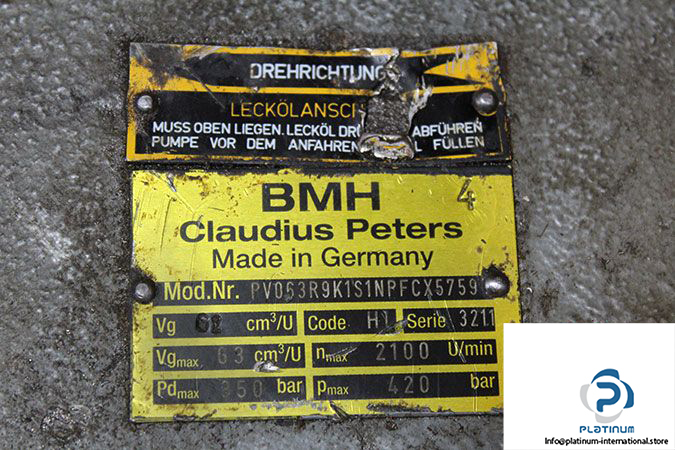

Model: PV063R9K1S1NPFCX5759

Size: 63

Max. Displacement: 63 cm³

Output flow at 1500 rpm: 94.5  l/min

Nominal Pressure: 350 bar

Max. Pressure: 420 bar

Max. Case Drain Pressure: 2 bar

Min. Inlet Pressure: 0.8 bar

Max. Inlet Pressure: 16 bar

Shaft Diameter: 40 mm

Input Power at 1500 rpm and 350 bar: 61.3 kW

Actual Speed rpm: 2100 min^-1

Max Speed rpm: 2800 min^-1

Shaft Diameter: 40 mm

Moment of Inertia: 0.018 kgm²

Viscosity Range: 16 … 100 mm²/s

Weight: 60.6 kg
