Manufacture: Cne

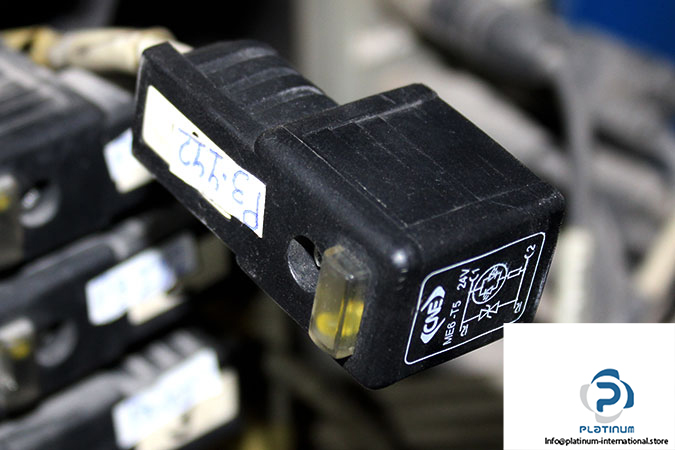

Type: Valve Connector

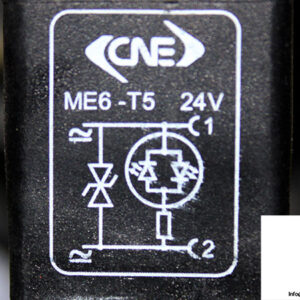

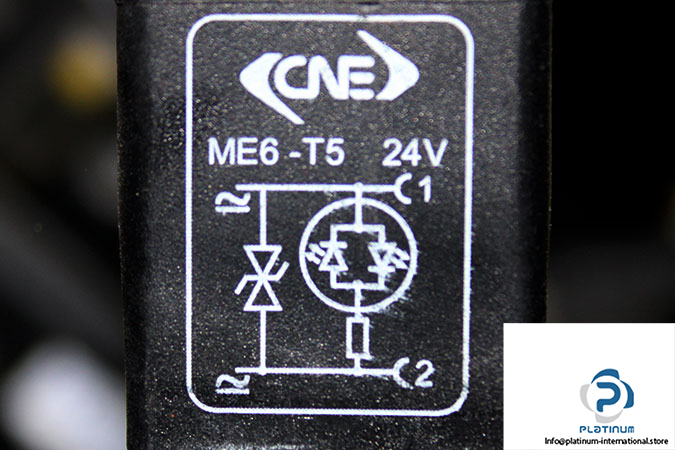

Model: ME6-T5
Series: ME6

Rated Voltage: 24 V AC/DC
Rated current: 4 A
Contact resistance: ≤ 5 mΩ
Mounting: central screw M3 x 28,5mm
Contact material: CuSn silver plated
Protection degree: IP 67
Pollution severity: 3
Cable temperature range: -15 … +70°C
Pin dimension: 6,3 x 0,8 mm; 4,8 x 0,8mm
