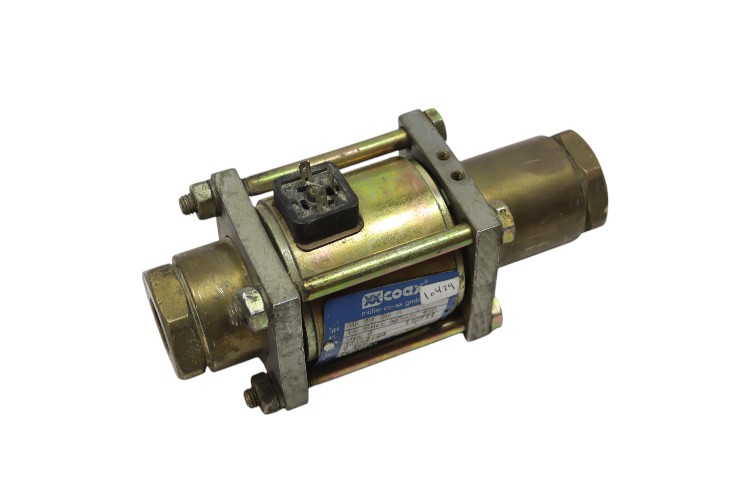

Coax MK 20 NC D Coaxial Valve

The Coax MK 20 NC D Coaxial Valve is a high-performance solution designed for precise flow control in demanding applications. Engineered to handle a wide range of media, including gaseous, liquid, highly viscous, gelatinous, and contaminated substances, this valve ensures reliability in high-pressure environments. With a pressure-balanced design and spring return mechanism, it operates efficiently in automation and industrial control systems.

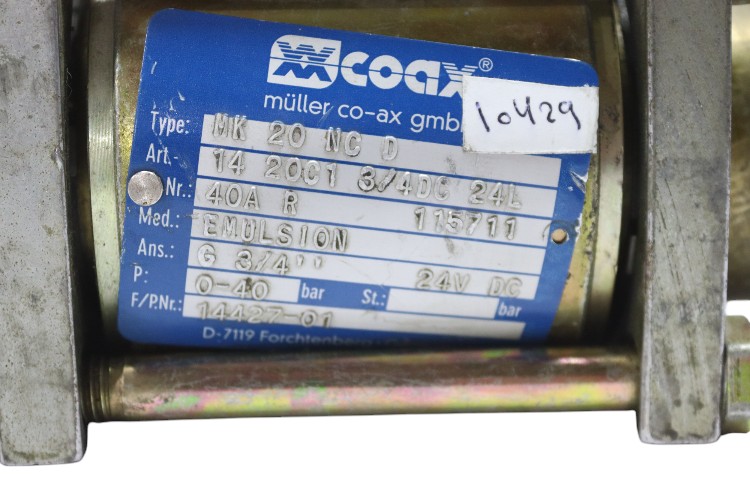

• Manufacturer: Coax
• Type: Coaxial Valve
• Model: MK 20 NC D
• Art. No.: 1420C13/4DC24L
• Part No.: 40A R 115711

Technical Information

• Media: Gaseous, Liquid, Highly Viscous, Gelatinous, Contaminated
• Operating Pressure Range: 0 to 40 bars
• Voltage: 24 V DC
• Actuation: Direct-current magnet
• Function: 2/2 way, normally closed (NC)
• Operating Principle: Pressure balanced with spring return
• Temperature Range:
  • Media: -20 to 100 °C
  • Ambient: -20 to 80 °C
• Connection: G3/4

Designed for efficiency and durability, the Coax MK 20 NC D is an ideal choice for industrial applications requiring reliable flow control in extreme conditions.
