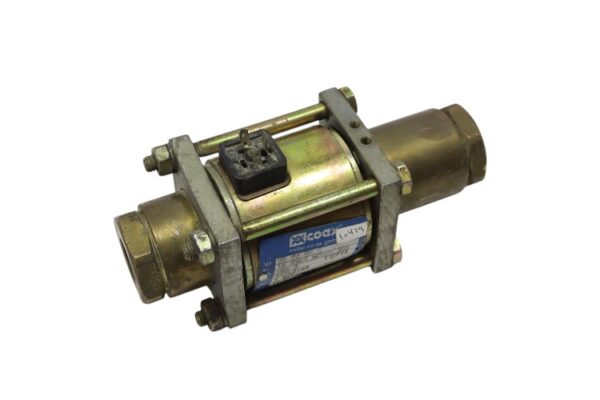

Coax MK 20 NC D Coaxial Valve
The Coax MK 20 NC D Coaxial Valve is a high-performance solution designed for precise flow control in demanding applications. Engineered to handle a wide range of media, including gaseous, liquid, highly viscous, gelatinous, and contaminated substances, this valve ensures reliability in high-pressure environments. With a pressure-balanced design and spring return mechanism, it operates efficiently in automation and industrial control systems.

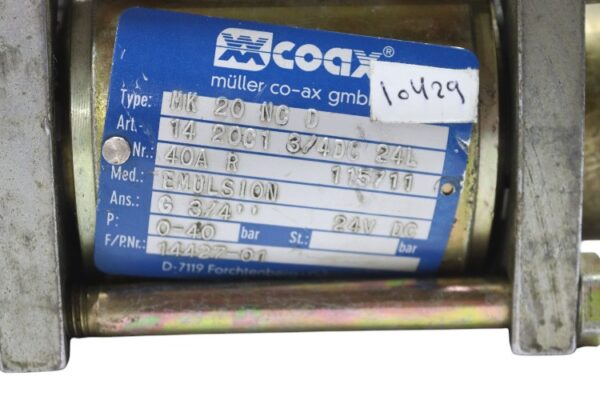

- Manufacturer: Coax
- Type: Coaxial Valve
- Model: MK 20 NC D
- Art. No.: 1420C13/4DC24L
- Part No.: 40A R 115711
Technical Information
- Media: Gaseous, Liquid, Highly Viscous, Gelatinous, Contaminated
- Operating Pressure Range: 0 to 40 bars
- Voltage: 24 V DC
- Actuation: Direct-current magnet
- Function: 2/2 way, normally closed (NC)
- Operating Principle: Pressure balanced with spring return
- Temperature Range:
- Media: -20 to 100 °C
- Ambient: -20 to 80 °C
- Connection: G3/4
Designed for efficiency and durability, the Coax MK 20 NC D is an ideal choice for industrial applications requiring reliable flow control in extreme conditions.
