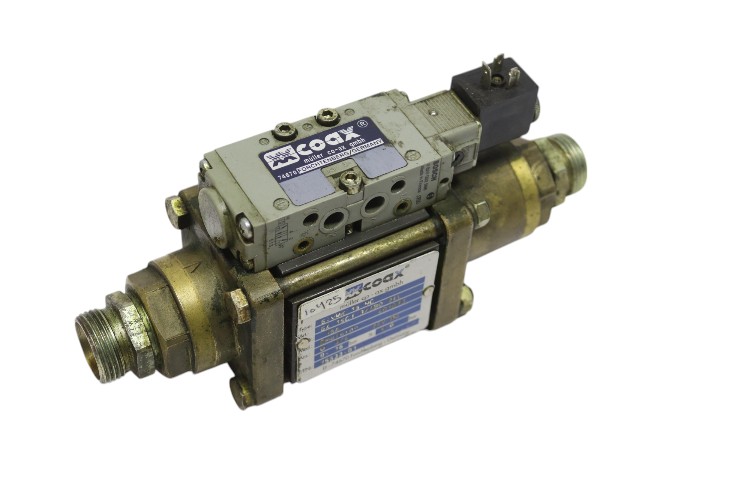

Coax 5-VMK 15 NC Coaxial Valve
The Coax 5-VMK 15 NC Coaxial Valve is engineered for controlling various media, including gaseous, liquid, highly viscous, and contaminated substances. Designed for industrial applications, this 2/2-way normally closed (NC) valve operates efficiently under a wide pressure range and is equipped with high-performance Bosch solenoid and coil attachments.

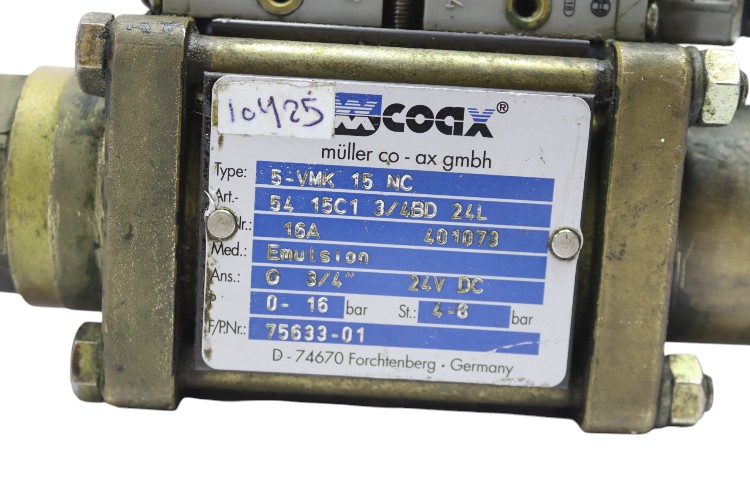

- Manufacturer: Coax
- Type: Coaxial Valve
- Model: 5-VMK 15 NC
- Art. No.: 5415C13/4BD24L
- Part No.: 75633-01 / 16A 401073
Technical Information
- Media Compatibility: Gaseous, liquid, highly viscous, gelatinous, pasty, contaminated
- Thread Size: G3/4
- Operating Pressure Range: 0 to 16 bar
- Actuation Pressure Range: 4 to 6 bar
- Supply Voltage: 24 V DC
- Valve Function: 2/2 Way, Normally Closed (NC)
- Maximum Media Temperature: 60°C
- Maximum Ambient Temperature: 50°C
Attachments

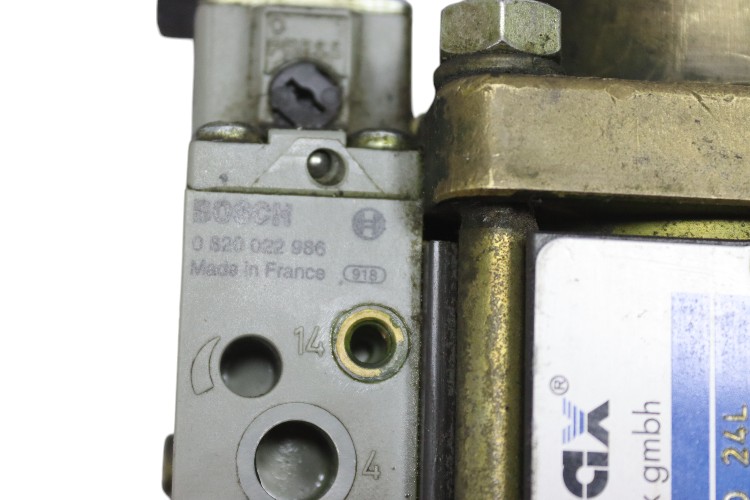

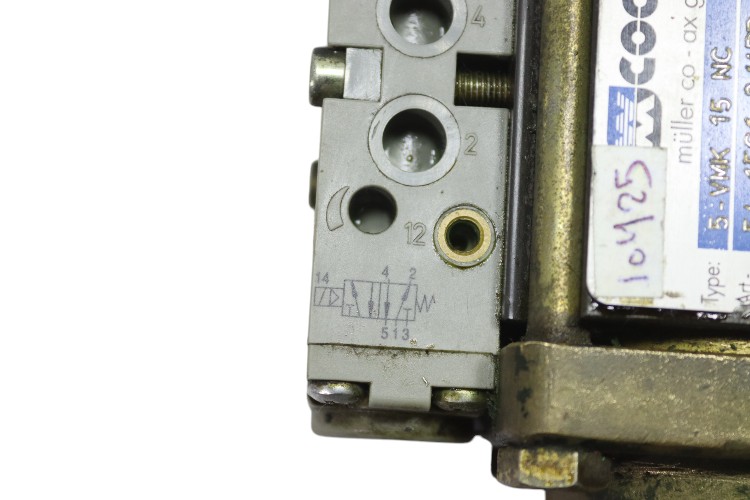

- BOSCH Solenoid Valve
- Manufacturer: Bosch
- Type: Solenoid Valve
- Part No.: 0820022986
- Function: 4/2 Way
- Connection: G1

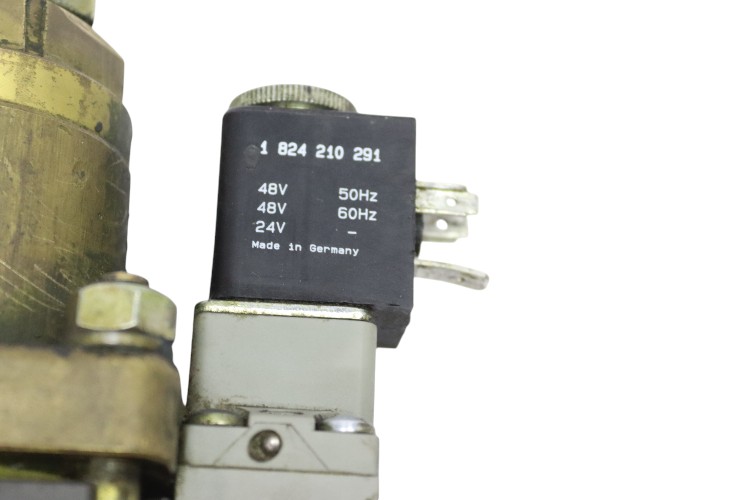

- BOSCH Coil
- Manufacturer: Bosch
- Type: Coil
- Part No.: 1824210291
- Coil Voltage: 48 V AC, 50/60 Hz / 24 V DC
With its robust design and reliable attachments, the Coax 5-VMK 15 NC provides high-performance fluid and gas control, ensuring operational efficiency in demanding industrial environments.
