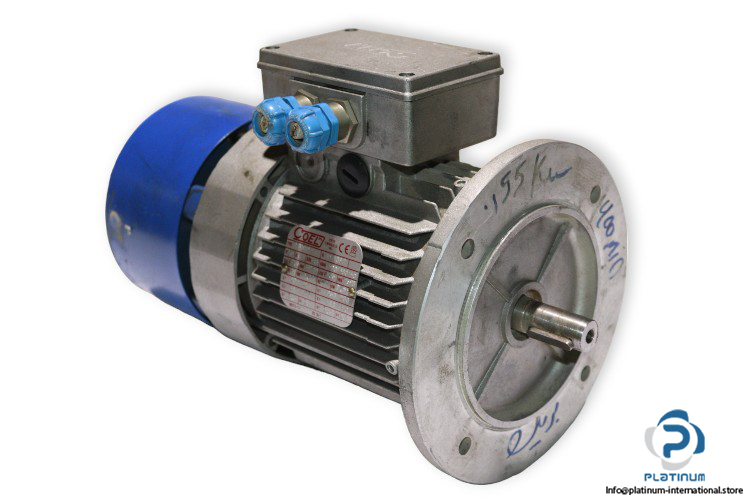

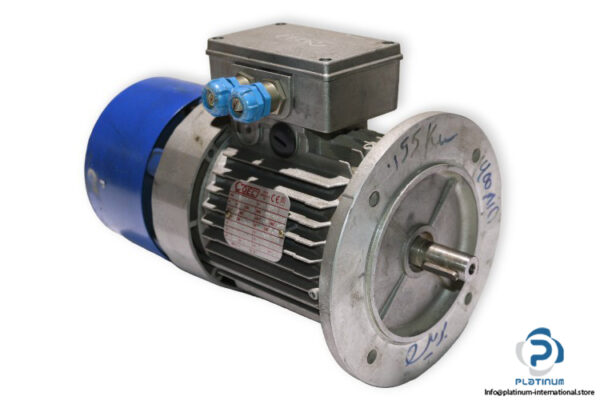

Coel F80B4 Brake Motor

The Coel F80B4 is a reliable and efficient brake motor designed for industrial automation systems requiring safe stopping and precise motion control. With dual-frequency operation, high protection class, and thermal stability, this motor offers consistent performance and long service life.

Manufacturer: Coel
Type: Brake Motor
Model: F80B4

Technical information

• Rated Power [kW]: 0.55 / 0.55
• Rated Voltage at 50 Hz [V]: 220“240 / 380“415
• Rated Voltage at 60 Hz [V]: 260“280 / 440“480
• Rated Current [A]: 3.6 / 2.1
• Rated Speed [min»¹]: 1410 / 1690
• Frequency [Hz]: 50 / 60
• Protection Class [IP]: 54
• Thermal Class: F
• Duty: S1 (continuous duty)
• Power Factor [cos φ]: 0.76
• Brake Voltage [V]: 220 / 380 / 50
