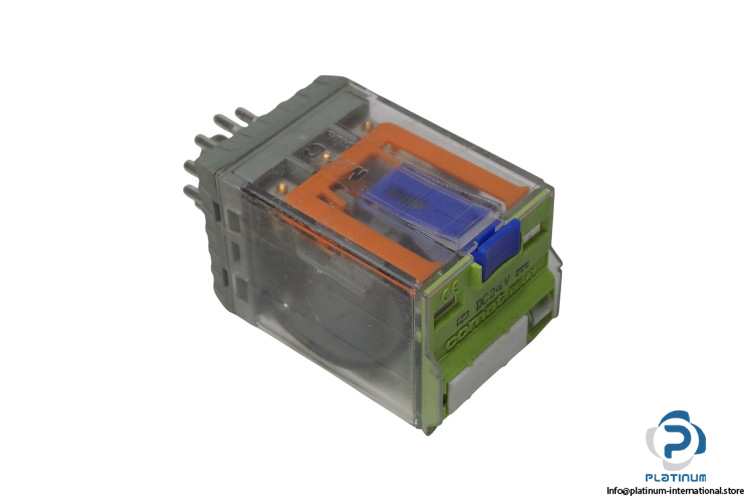

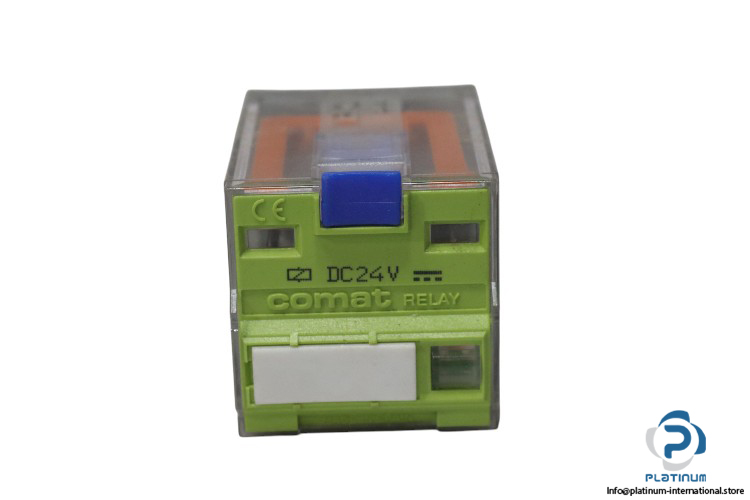

Comat C3-A30 D/24V “ Power Relay

The Comat C3-A30 D/24V power relay is designed to provide reliable switching and control for industrial electrical systems. With multiple contact configurations and wide compatibility, it ensures high performance across a variety of applications.

• Manufacturer: Comat
• Type: Power Relay
• Model: C3-A30 D/ / V
• MNR: C3-A30D/DC 24

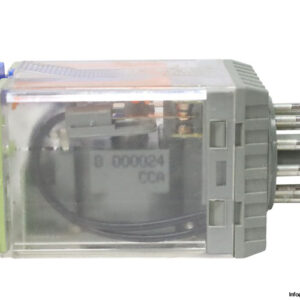

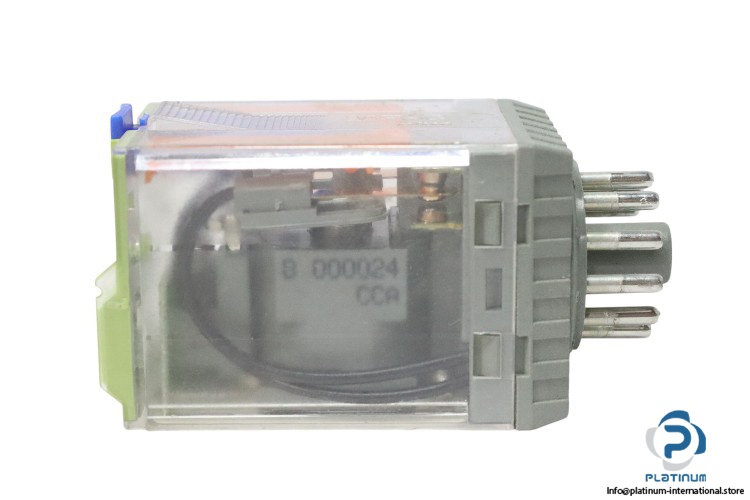

• Ref. No.: 8 000024 CCA

Technical Information:

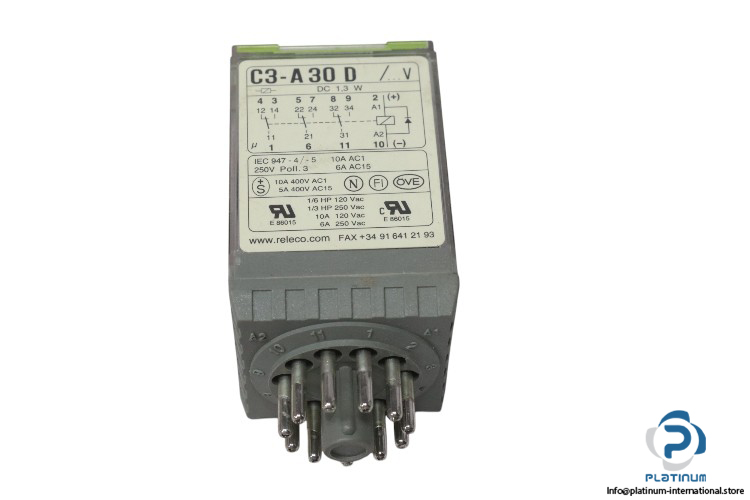

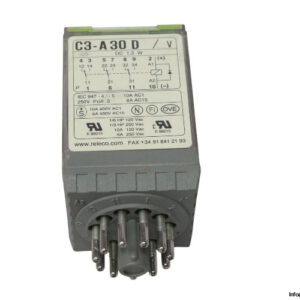

• Coil Voltage: 24 V DC
• Power Consumption: 1.3 W
• Coil Resistance: 67 (96 mA) ohm, 480 (50 mA) ohm
• Contact Configuration: 3 Changeover contacts
• No. of Poles: 3
• Current Rating: 10A (AC1), 6A (AC15)
• Maximum Rated Voltage: 250 V AC

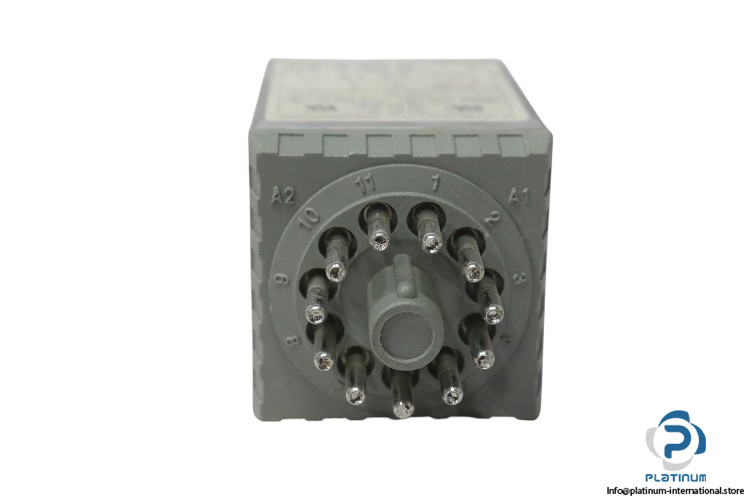

• No. of Pins: 11
• Standard: IEC 947-4/-5
• Contact Materials: AgNi
• Ambient Operating Temperature: -40 to 70°C
• Dimensions: 35 X 52 X 35 mm
