COMMONWEALTH FP-108EX AXIAL FAN

AXIAL FAN

Heavy-duty axial fan from Commonwealth with 5 blades, dual-speed operation, 220/240 V input, and 35 W power, designed for high-flow industrial ventilation and electronic cooling systems.

SKU: 1063838 Category: Tags: , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

COMMONWEALTH FP-108EX AXIAL FAN

The Commonwealth FP-108EX axial fan is built for high airflow and reliable cooling in industrial and electronic systems. With dual-speed operation, strong air pressure, and a durable build using plastic blades and a metal housing, it delivers efficient push-direction ventilation for high-demand environments.

Manufacturer: Commonwealth
Type: Axial Fan
Model: FP-108EX
Code: S1B/H3

Technical Information

  • No. of Blades: 5

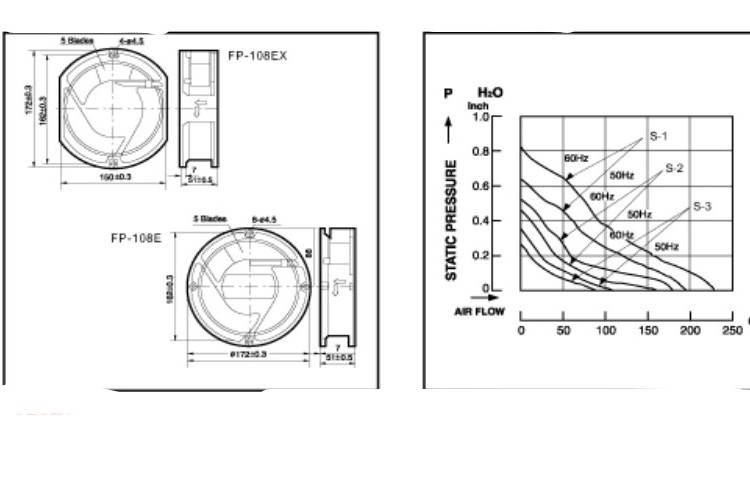

  • Dimensions (mm): 172x150x51
  • Direction: Push
  • Voltages (V AC): 220/240
  • Power Rating (W): 35
  • Speed (rpm): 2800/3100
  • Flow Rate (m³/h): 324/396
  • Flow Rate (CFM): 190.84 / 233.24
  • Current (A): 0.29
  • Frequency: 50/60 Hz
  • Inverter: Without Inverter
  • Number of Wires: 2
  • Blade Material / Fan Housing Material: Plastic / Metal
  • Pressure (in-H2O): 0.63 / 0.79
Weight0,85 kg
