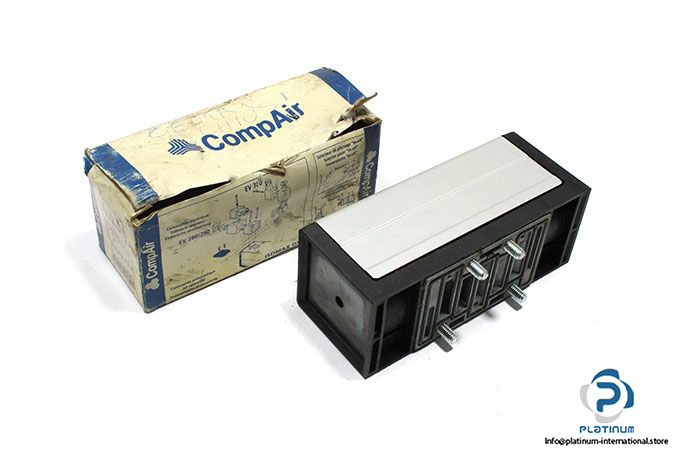

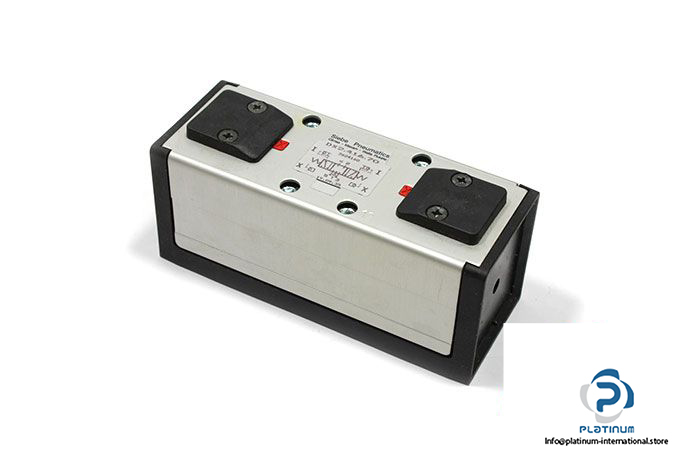

Compare DX2 Double Solenoid Valve
The Compare DX2 Double Solenoid Valve is a high-performance pneumatic valve designed for industrial automation. Built with durable materials such as reinforced fiberglass and stainless steel, it ensures long-lasting operation and reliable air flow control. Its compliance with ISO 5599-1 standards makes it suitable for a wide range of pneumatic systems.
- Manufacturer: Compare
- Type: Double Solenoid Valve

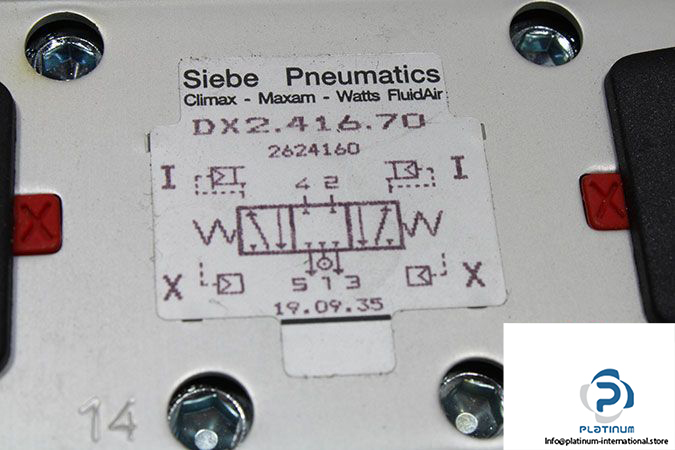

- Model: DX241670 / DX2.416.70
- Part No.: 2624160
- Code: 19.09.35
- Series: DX2
Technical Information
- Size: 70 mm
- Function: 5/3 Way
- Media: Air
- Actuator: Electrical
- Standard Subbase: ISO 5599-1 and NFE 49-080
- Operating Pressure: -0.9 to 12 bar
- Piloting Pressure: 2 to 12 bar
- Flow Rate: 4320 Nl/mn
- Material:
- Valve Member – Seat: Self-lubricating acetal – ceramic
- Body: Polyamide reinforced fiberglass
- Casing – End Plates: Anodized aluminum – Painted zinc plated steel
- Valve Plate: Zamak
- Seals: Nitrile
- Springs: Stainless steel
- Screws: Zinc plated steel
- Function Selector Top Cover – Seal: Polyamide reinforced fiberglass – Polyester
- Working Temperatures: -10 to +60°C
- Connection: Sub-based
