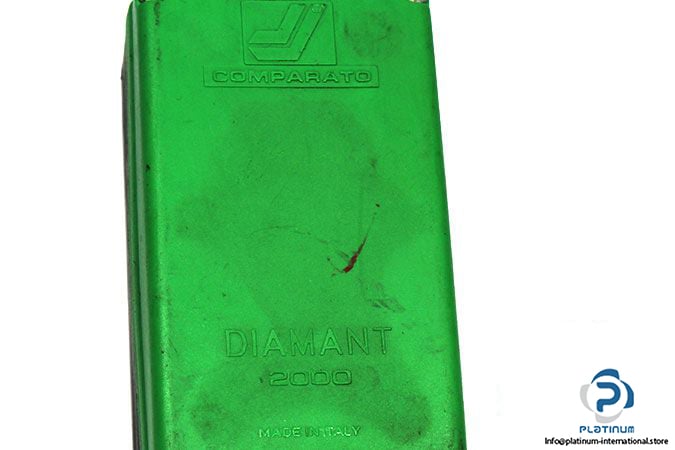

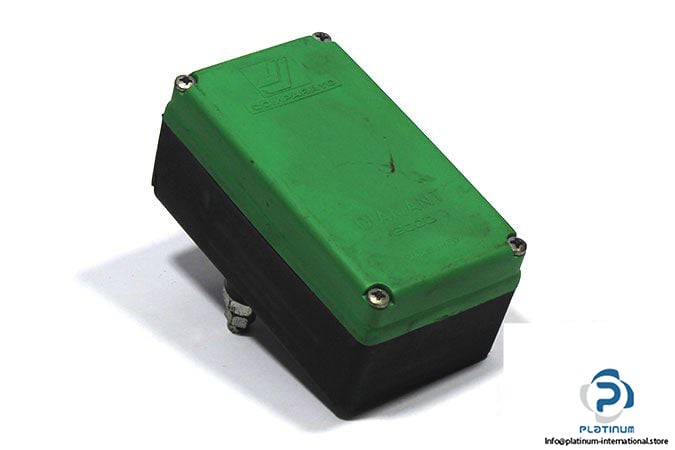

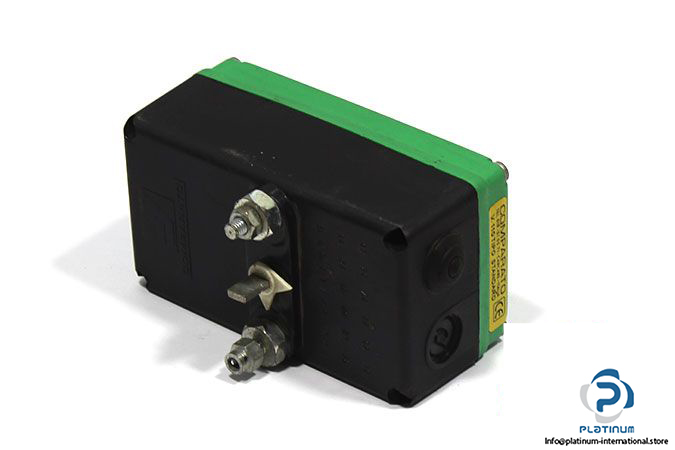

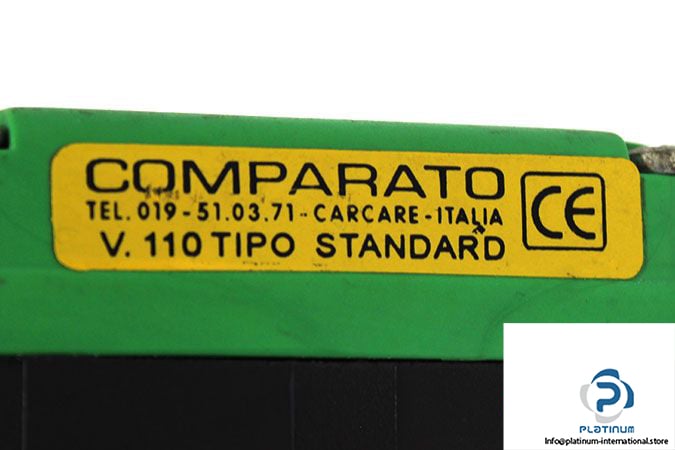

Manufacturer: Comparato

Type: Motorized Valve

Model: DIAMANT 2000



Application

• Heating/Cooling Systems (HVAC)
• Drinking Water Systems
• Systems Using Alternative Energy
• Household Automation Systems in General

Connection with Valve Body: COMPARATO Connection

Position Indicator: Arrow Indicating the Ball Position

Motor: Bidirectional – Synchronous

Power Supply: 110 V AC

Input Power: 6 VA

Frequency: 50 Hz

Electrical Connection: By Means of a Terminal Block Inside the Actuator

Operational Room Temperature: -10…50 °C

Protection Class: IP65

Dimensions: 125 x 69 x 57.5 mm

Weight: 0.60 kg
