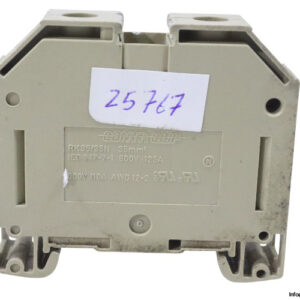

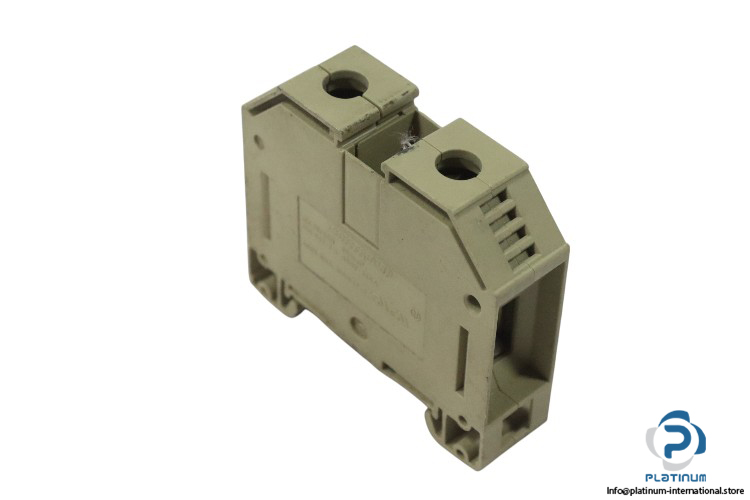

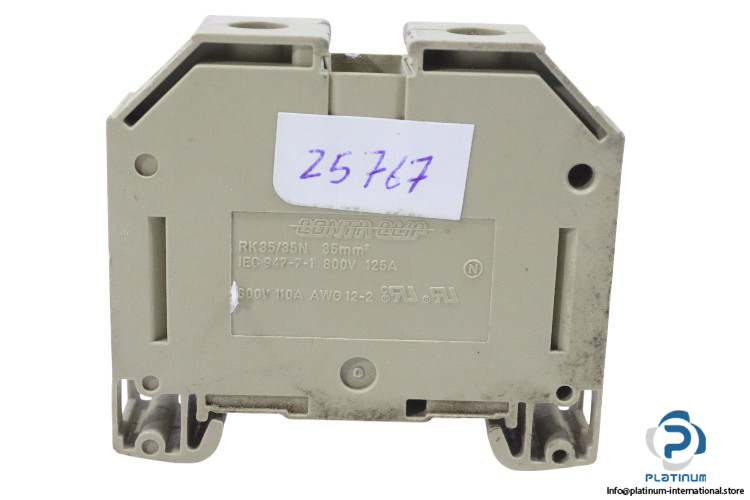

Conta-Clip RK35/35N “ Feed-through Terminal Block
The Conta-Clip RK35/35N feed-through terminal block is designed to provide secure and efficient connections in electrical systems. Built to handle high current and voltage ratings, this terminal block is ideal for industrial and commercial applications requiring reliable power transmission.
- Manufacturer: Conta-Clip
- Type: Feed-through Terminal Block
- Model: RK35/35N
Technical Information:
- Nominal Rated Current: 125 A
- Rated Impulse Voltage: 8 kV
- Nominal Rated Voltage: 800 V
- Recognized Rated Current: 110 A
- Recognized Rated Voltage: 600 V
- Rated Cross-section: 35 mm²
- Connection Position: Lateral
- Connection Principle: Screw connection
- Connections: 2
- Number of Levels: 1
- Number of Terminals per Level: 2
- Wire Cross-section AWG, Max.: 2
- Wire Cross-section AWG, Min.: 12
- Working Temperature: -40 to 120°C
- Standard: IEC 947-7-1
