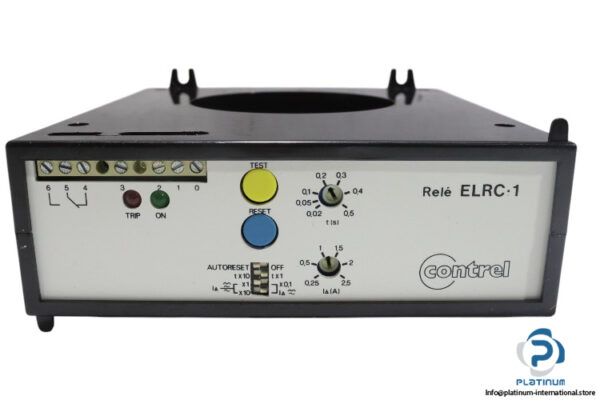

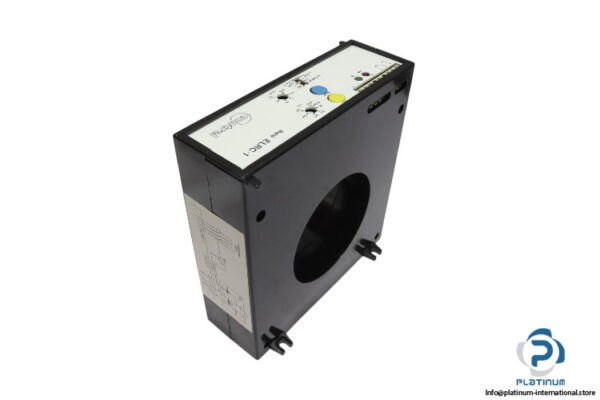

Contrel Elettronica ELRC1 “ Earth-Leakage Differential Protection Relay
The Contrel Elettronica ELRC1 is a high-quality earth-leakage differential protection relay, designed to safeguard electrical systems from leakage currents. With flexible auxiliary voltage options and adjustable tripping current settings, it ensures reliable protection and performance in diverse applications.
- Manufacturer: Contrel Elettronica
- Type: Earth-Leakage Differential Protection Relay
- Model: ELRC1
- Ref. No.: 08 94
Technical Information:
- Auxiliary Voltage: 110 V AC/DC, 220 V AC, 380 V AC
- Contact Configuration: 1 Change over contact
- Mounting: Panel-mount, DIN rail
- Tripping Current: Max. 2.5 A, Min. 0.25 A
- Setting Time: Max. 0.5 s, Min. 0.02 s
- Hole Diameter: 80 mm
