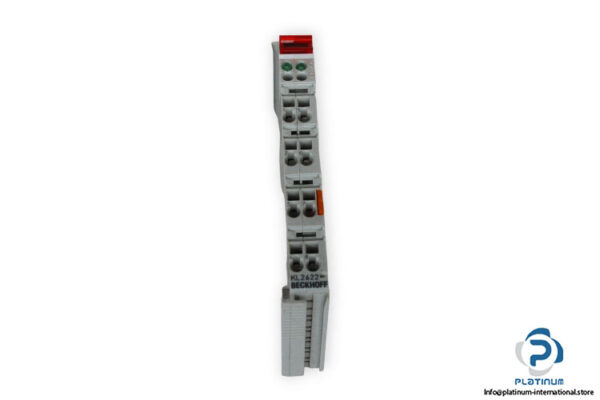

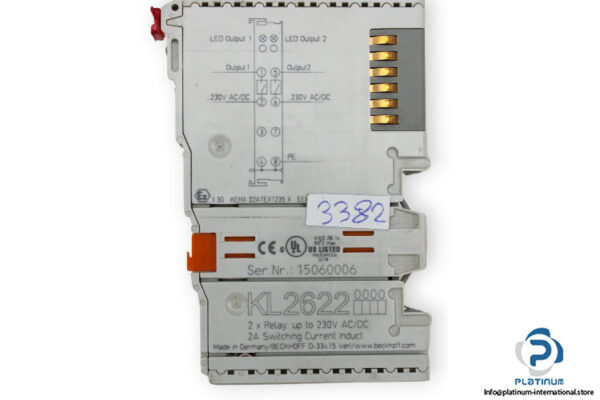

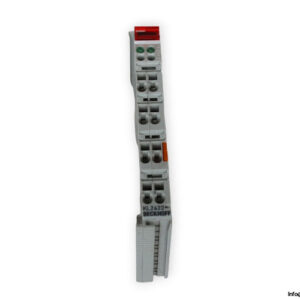

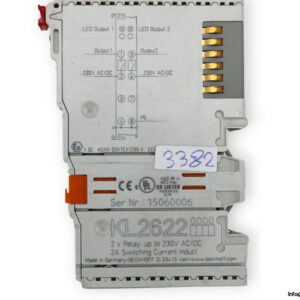

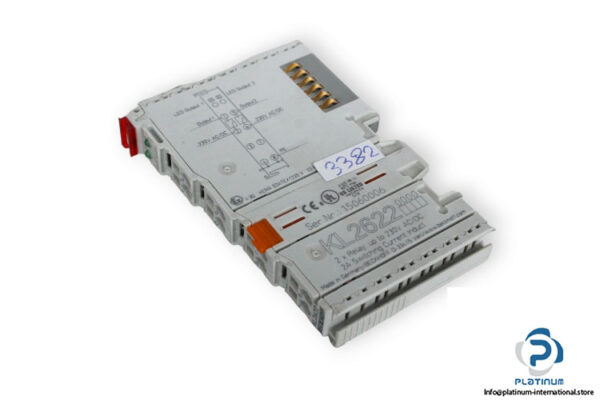

Beckhoff KL2622 2-Channel Relay Output Terminal
The Beckhoff KL2622 is a compact 2-channel relay output terminal designed for reliable switching of AC/DC loads. With durable construction, integrated signal LEDs, and strong electrical isolation, it ensures safe and efficient operation in industrial automation environments.
Manufacturer: Beckhoff
Type: 2-Channel Relay Output Terminal
Model: KL2622
SN: 15060006
Technical Information
- Nominal Voltage: 230 V AC/DC
- Max. Output Current: 5 A per channel
- Output: 2 Normally Open Contact (230 V AC/DC, 2 A)
- Electrical Isolation: 500 V
- Current Consumption K-Bus typ.: 85 mA
- Load Type: Ohmic, Inductive, Lamp Load
- Material: Polycarbonate
- Design Form: Compact Terminal Housing with Signal LEDs
- Protection Degree: IP20
- Operating Temperature: -25 / +60 °C
- Dimensions (W x H x D): 12 x 100 x 68 mm
