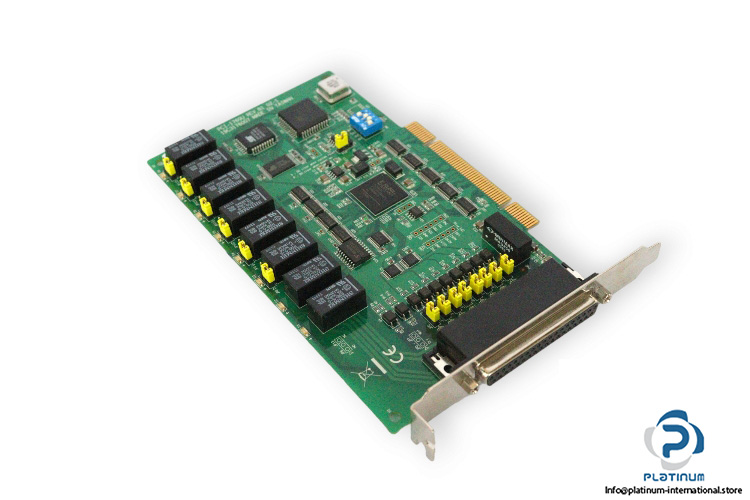

Type: PCI Card with 8-ch Counter/Timer

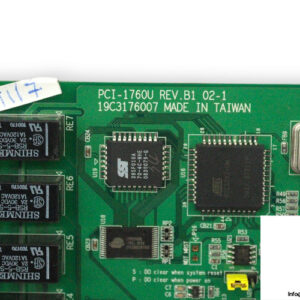

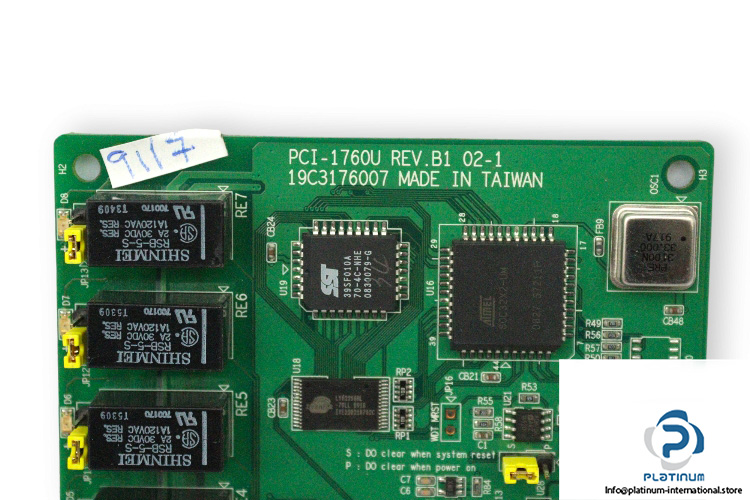

Model: PCI1760U

No. of Digital Input Channels (DI): 8
No. of Output: 8 Relay actuator (2 x Form C, and 6 x Form A)
Input Voltage: (Logic 0) 1 V, (Logic 1) 4.5 … 12 V
Isolation Protection: 2500 V DC
Input Resistance: 2 k Ohm @ 1/4 W
Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, MATLAB, Qt
Counter/Timer:
No. of Channels: 8
Resolution: 16 bits
Compatibility: 5 V/TTL
Max. Input Frequency: 500 Hz
Isolation Protection: 2,500 VDC
Relay Output:
Contact Rating: (Resistive) 2 A @ 30 VDC, 1 A @ 120 VAC
Max. Switching Power: 125 VA, 60 W
Max. Switching Voltage: 250 VAC, 220 VDC
Max. Switching Current: 2 A
Resistance Contact: 50 mW max
Bus Type: Universal PCI V2.2
I/O Connectors: 1 x DB37 female connector
Power Consumption: Typical 5 V @ 450 mA, Max.: 5 V @ 850 mA
Operating Temperature: 0 … 60 ° C
Dimension: 175 X 100 mm
