Manufacturer: Endress+Hauser
Type: Conductivity transmitter
Model: LIQUISYS-M
Order code: CLM223IS0016

Application: Water, waste water, process
Characteristic: 4-wire transmitter with a two-line display
Design: Panel-mounted transmitter for conductivity
Main Voltage: 230 V AC
Frequency: 50/60 Hz
Power: 7.5 VA
Alarm output: relay
Output / communication: 0/4-20 mA, Hart, Profibus.
Protection Degree: IP54/IP30
Temperature sensor: Display and current output
Input: One-channel transmitter
Connectable temperature Sensors: Pt 100, Pt 1000, NTC 30K

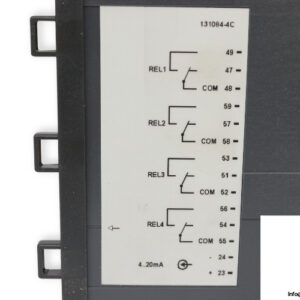

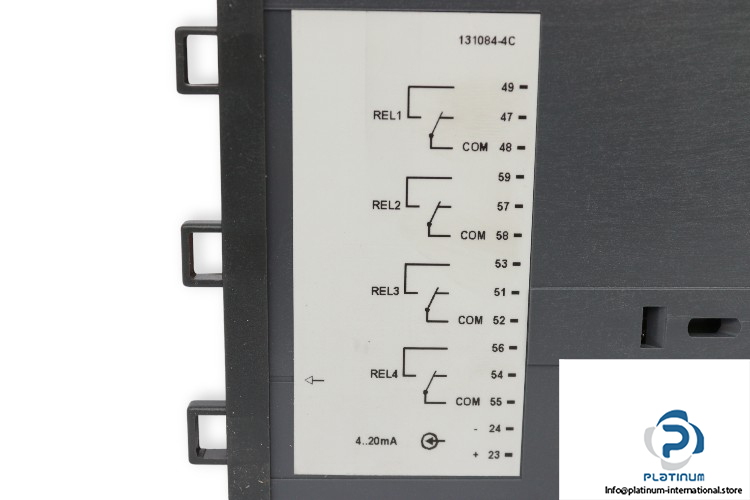

Contact: 4 change overcontact (CO)
Current input: 4 … 20 mA
Galvanically isolated Load: 260 Ω for 20 mA (voltage drop 5.2 V)
Signal resolution: Max. 700 digits/mA
No. of digital input (DI): 2
Measurement range: 0 … 2000mS/cm
Ambient temperature: -10 … 55°C
Dimension: 96 x 96 mm, built-in-depth: 146 mm
