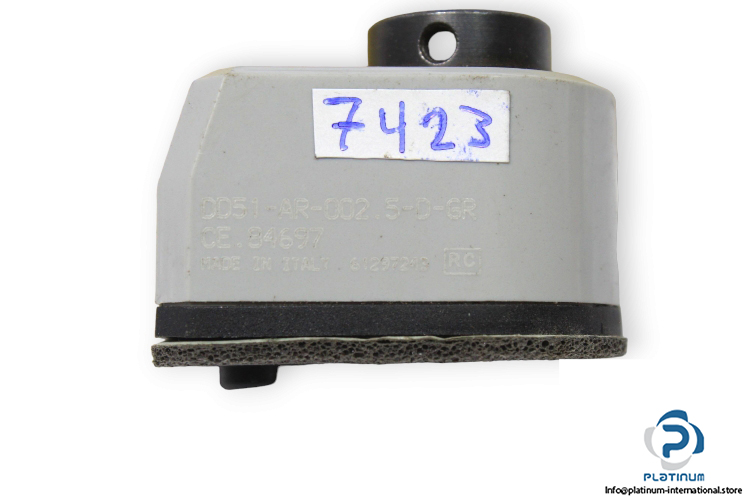

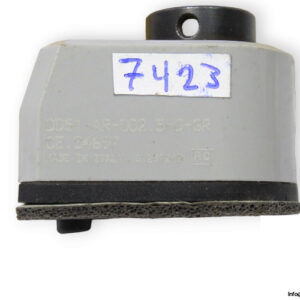

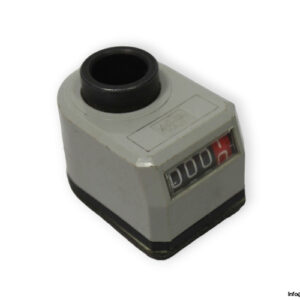

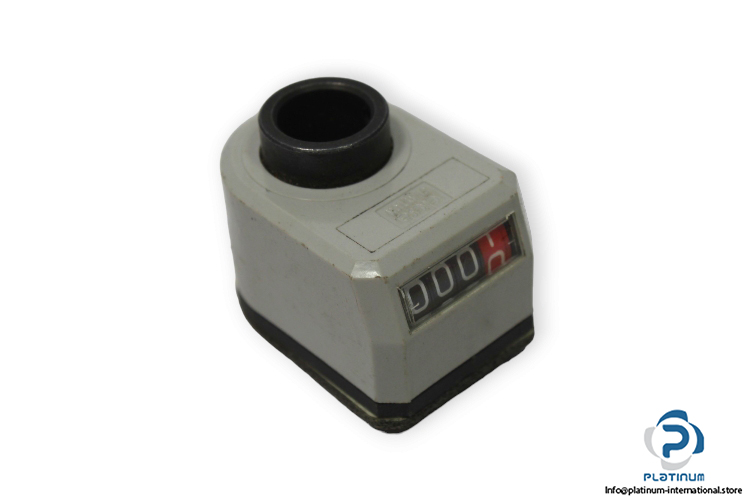

Manufacture: Elesa
Type: Mechanical Position Indicators Counter
Model: DD51-AR-002.5-D-GR
Part No.: CE.84697
Series: DD51

Features and Applications: can be assembled on passing through spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications
Count digits: 4 digits
Display Position: AR
Reading of the counter after one revolution: 002.5
Speed: 1000 rpm
Pitch: 2.5
Direction of Rotation: clockwise. Increasing values with clockwise rotation of the boss
Display: inclined display, counter in lower position
Dimensions: 38.5 x 47 x 33 mm
