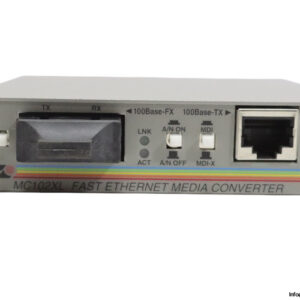

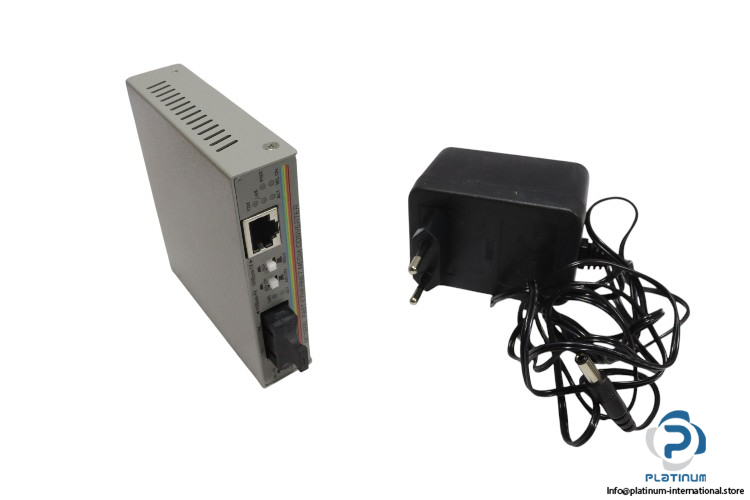

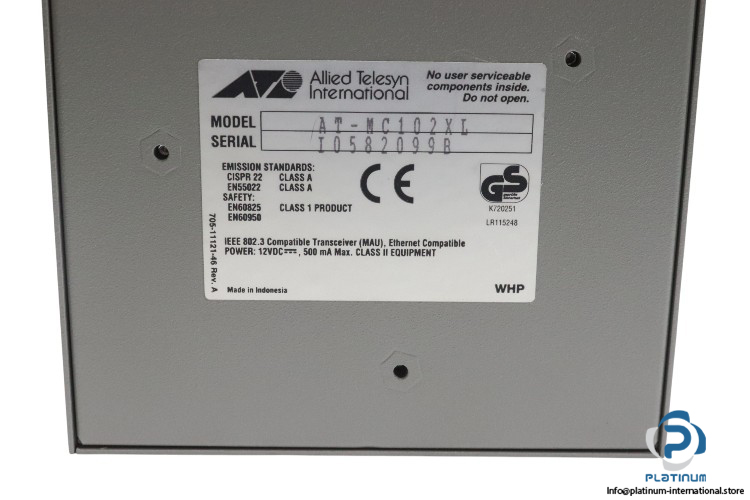

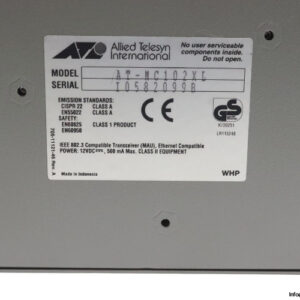

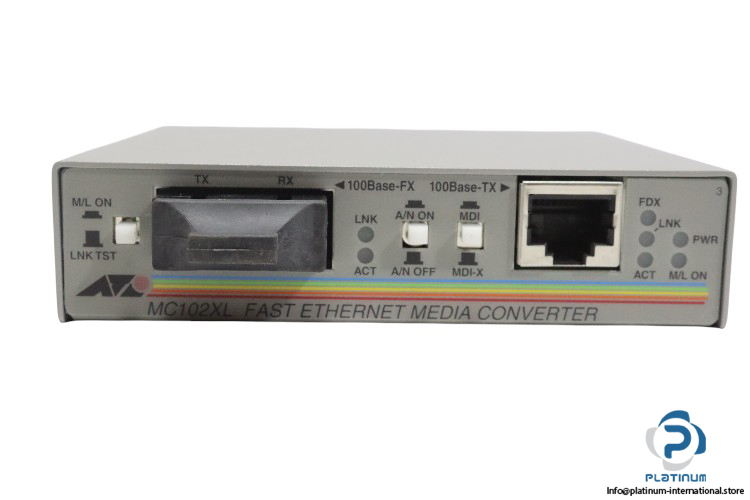

Allied Telesyn ATMC102XL20 “ Fast Ethernet Media Converter

The Allied Telesyn ATMC102XL20 Fast Ethernet Media Converter seamlessly converts UTP to multi-mode SC fiber, supporting high-speed data transmission over multimode fiber optic cables. Ideal for network expansion and connection over distances of up to 2 km, it operates with a 12 V DC power supply for efficient performance.

• Manufacturer: Allied Telesyn
• Type: Fast Ethernet Media Converter
• Model: ATMC102XL20

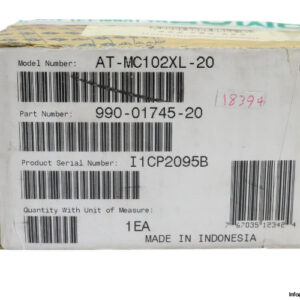

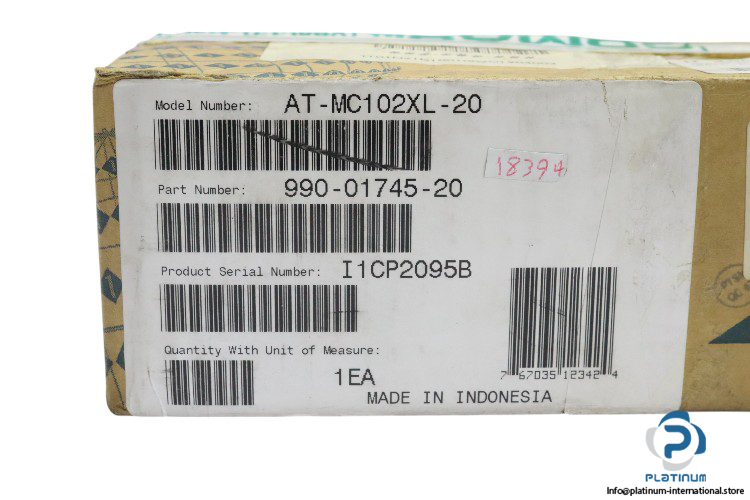

• Part No.: 990-01745-20

Technical Information:

• Type of Fiber Optic Cable: 50/125 or 62.5/125 micron multimode
• Optical Wavelength: 1310 nm

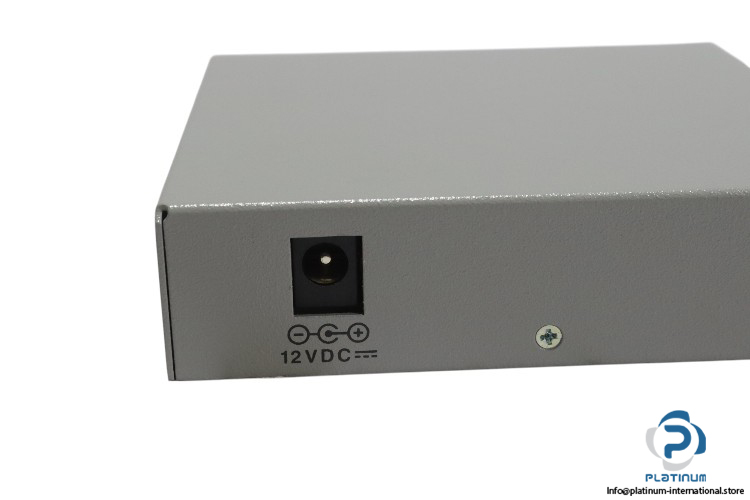

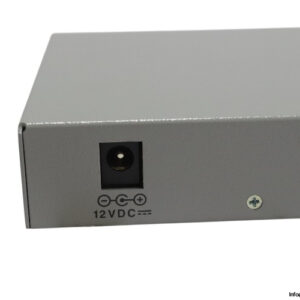

• Voltage: 12 V DC
• Current: 500 mA
• Power Consumption: 6 W
• Launch Power (dBm square) Transmitter: -19.0 to -14.0
• Launch Power (dBm square) Receiver: -31.8 to -14.0
• Max. Power / Link Budget: 12.8 dB
• Media Conversion: UTP to multi-mode SC (2 km) (1.2 mi)
• Dimensions: 105 × 95 × 25 mm

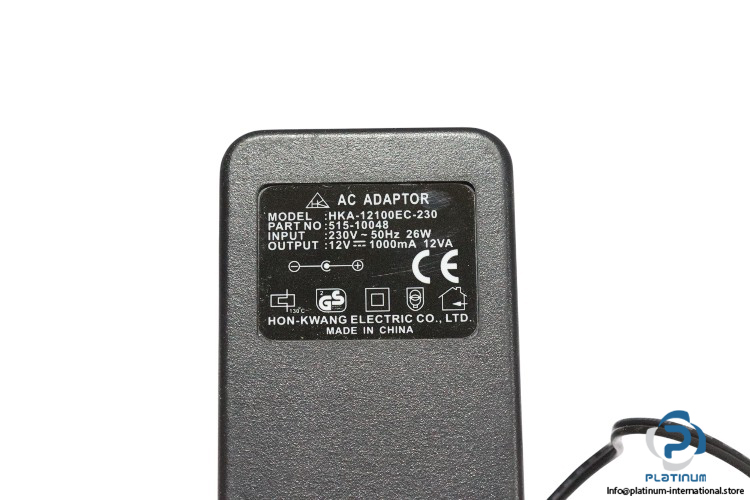

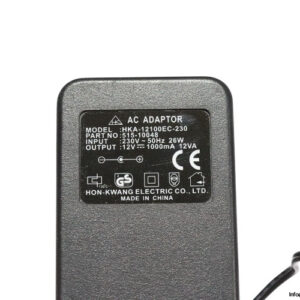

Hon-Kwang HKA-12100EC-230 “ AC/DC Adapter

The Hon-Kwang HKA-12100EC-230 AC/DC adapter provides stable 12 V DC output for the Allied Telesyn media converter, ensuring reliable power supply for network operations. This adapter is designed for industrial and commercial network environments.

• Manufacturer: Hon-Kwang
• Type: AC/DC Adapter
• Model: HKA-12100EC-230
• Part No.: 515-10048

Technical Information:

• Input: 230 V AC, 50 Hz, 26 W
• Output: 12 V DC, 1000 mA, 12 VA
