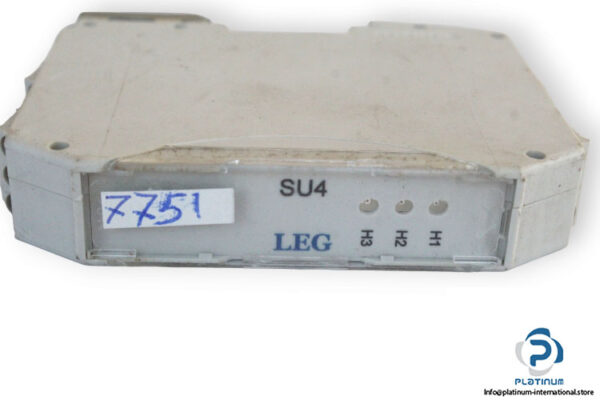

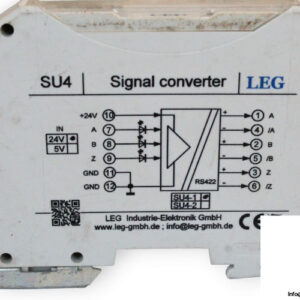

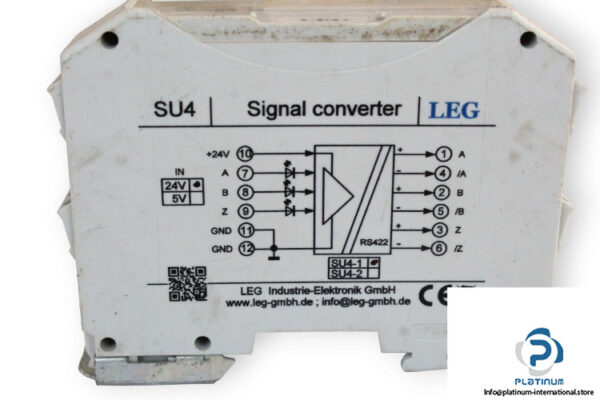

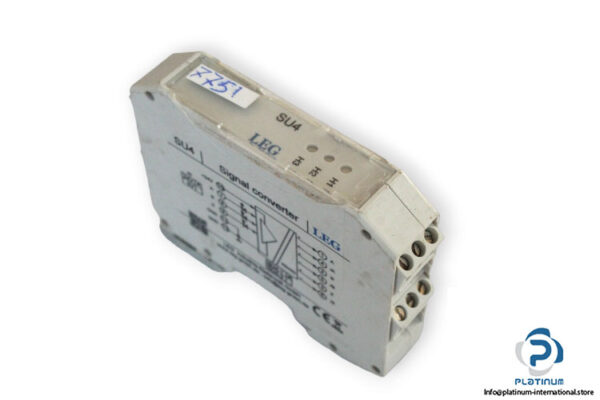

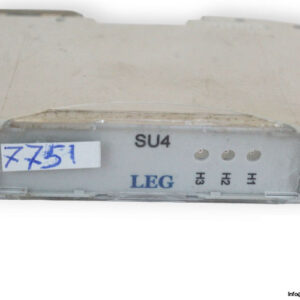

LEG SU4 SIGNAL CONVERTER
The LEG SU4 Signal Converter is a compact and high-performance device for reliable signal conversion between TTL/HTL levels and RS422 outputs. With fast switching times, potential isolation, and high transmission frequency, it ensures stable and efficient data transfer in industrial automation systems.
Manufacturer: Leg
Type: Signal Converter
Model: SU4
Application
Signal conversion 5VDC (TTL) / 24VDC (HTL) into RS422.
Technical Information
- Characteristics: Level converter, transmission frequency 1MHz, output 3 x RS422, potential isolation input/output, LED indication per channel, fast switching times, clear terminal labeling, narrow design, PB“Power-Bus“compatible, high reliability with 5 years warranty
- Supply Voltage: 19.2 / 30 V DC
- Input Voltage: SU4-1: 24 V DC (HTL) / SU4-2: 5 V DC (TTL)
- Power Consumption: < 1.5 VA + load
- Material: PA / V0
- Protection Category: IP20
- Connection: M3 screw-type terminal 0.14 “ 2.5 mm², flexible or inflexible
- Fixing: Snap-on mounting for norm rail TS35
- Operating Temperature: 0 / 50 °C
- Dimension: 17.5 x 70.4 x 90.5 mm
