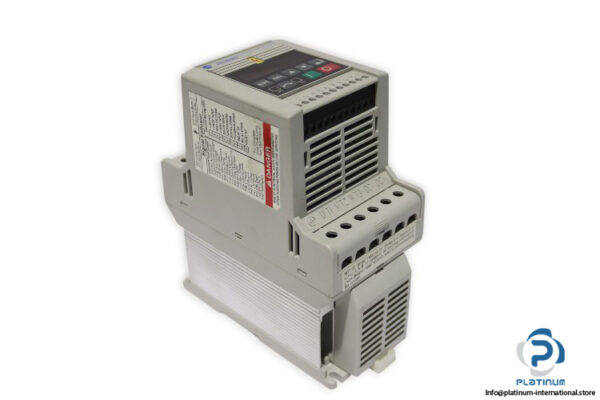

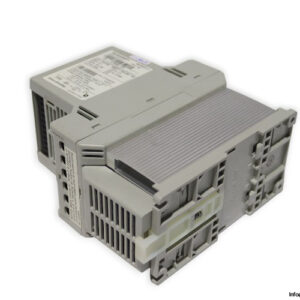

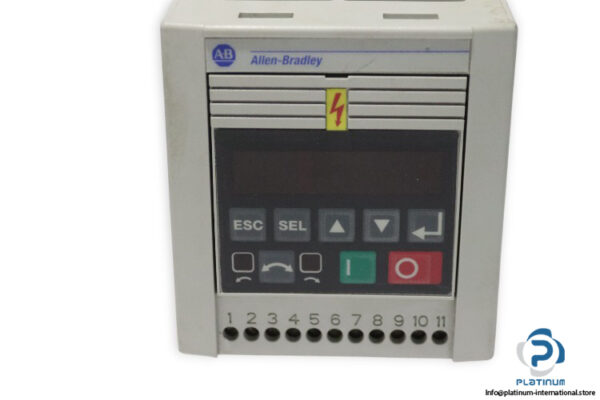

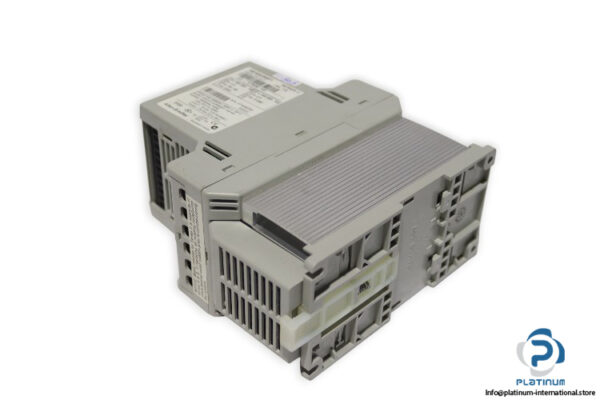

Allen Bradley 160-BA03NSF1 Variable Frequency Drive
The Allen Bradley 160-BA03NSF1 is a reliable variable frequency drive from the 160 series, designed for precision motor control in industrial environments. It ensures efficient performance, robust protection, and adaptability for a wide range of applications.
Manufacturer: Allen Bradley
Type: Variable Frequency Drive

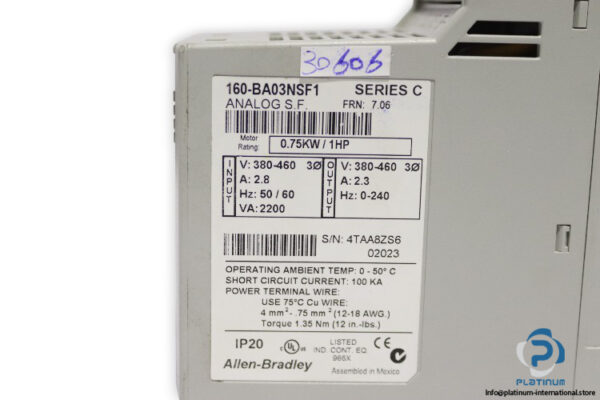

Model: 160-BA03NSF1
SER: C
Serial Number: 4TAA8ZS6 02023
Series: 160
Motor Rating: 0.75 kW / 1 HP
Technical Information
- Input Voltage: 380“460 V AC, 3-phase
- Input Current: 2.8 A
- Input Frequency: 50/60 Hz
- Input VA: 2200
- Output Voltage: 380“460 V AC, 3-phase
- Output Current: 2.3 A
- Output Frequency: 0“240 Hz
- Protection Rating: IP20
- Operating Ambient Temp: 0“50 °C
- Short Circuit Current: 100 kA
- Power Terminal Wire: 4 mm² “ .75 mm² (12“18 AWG)
- Torque: 1.35 Nm (12 in-lbs)
