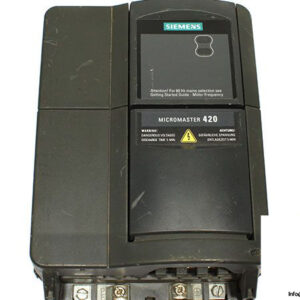

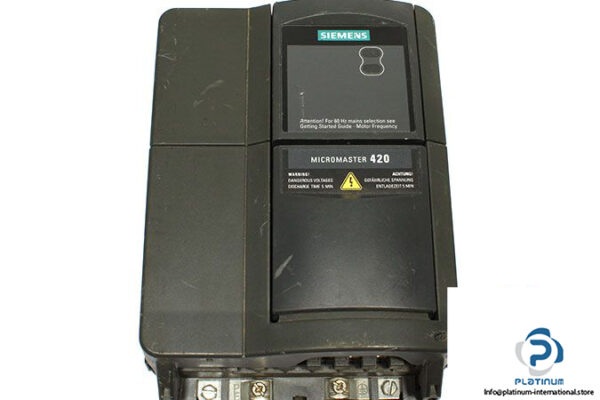

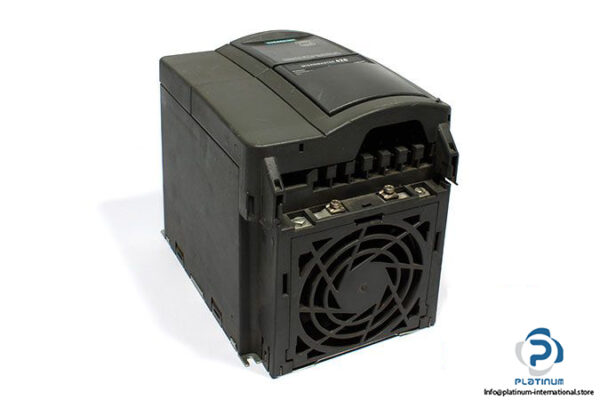

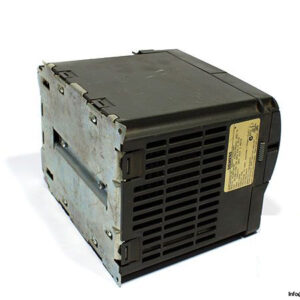

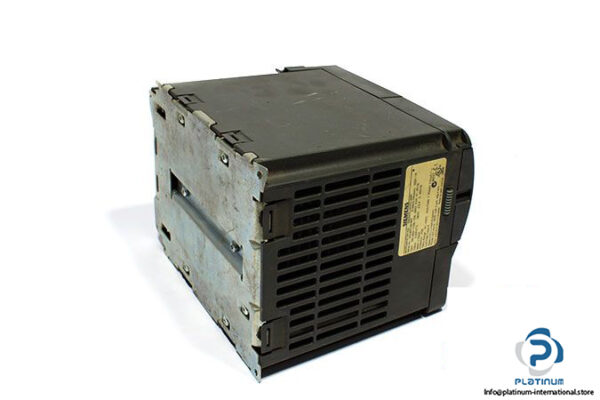

SIEMENS MICROMASTER 420 FREQUENCY INVERTER

The Siemens MICROMASTER 420 is a robust frequency inverter designed for a wide range of variable-speed drive applications. Featuring an internal filter and a compact design, it offers efficient motor control and reliable performance for industrial environments.

Manufacturer: Siemens
Type: With Internal Filter Frequency Inverter
Family: MICROMASTER 420
Order No.: 6SE6 420-2AD22-2BA1
SN: XAU803-001987
E STAND: D01/1.18

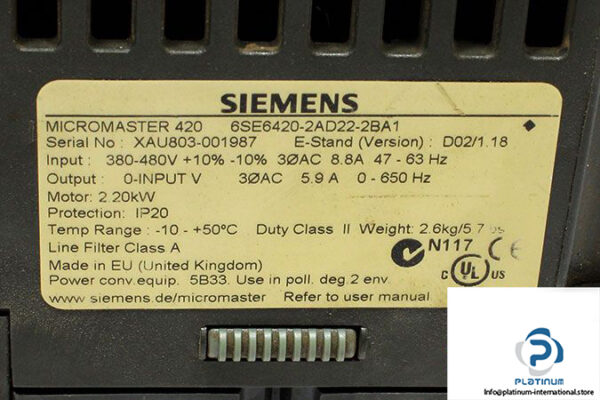

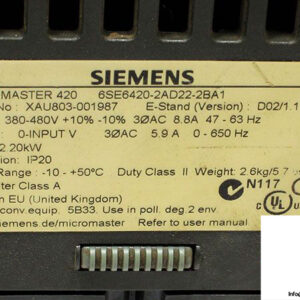

Technical Information

• Input Voltage: 3 Phase AC 380 / 480 V
• Input Rated Current: 8.8 A
• Input Frequency: 47“63 Hz
• Output Voltage: 3 Phase AC 0 “ 380 / 480 V
• Output Rated Current: 5.9 A
• Output Frequency: 0“650 Hz
• Power: 2.2 kW / 3 hp
• Dimensions: 203 x 147 x 167 mm
• Temperature Range: -10 / 50 °C
• Protection Class: IP20
