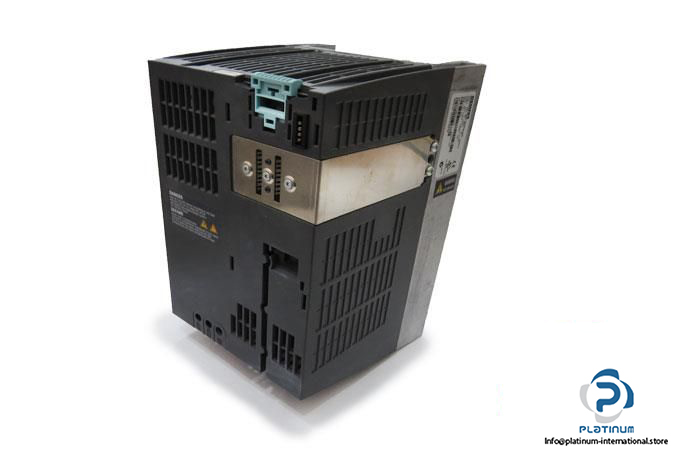

SIEMENS 6SL3 224-0BE22-2UA0 FREQUENCY INVERTER

The Siemens 6SL3 224-0BE22-2UA0 Frequency Inverter from the SINAMICS Power Module 240 family is engineered for efficient and precise motor control in industrial automation systems. Designed to handle demanding applications, this unit offers reliable power conversion and optimized motor performance.

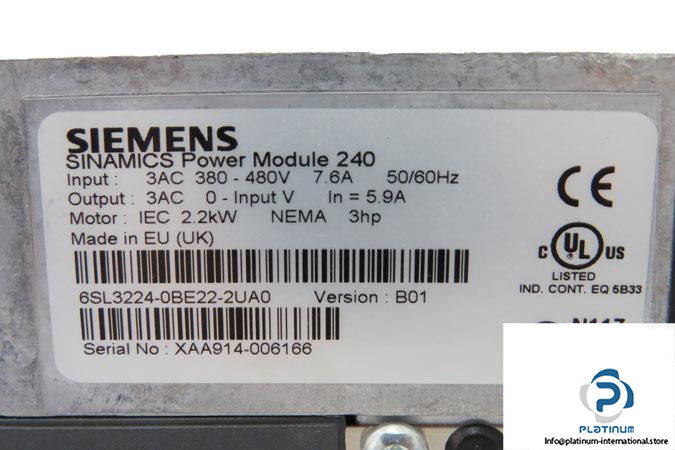

Manufacturer: SIEMENS
Type: FREQUENCY INVERTER
Model: 6SL3 224-0BE22-2UA0
Family: SINAMICS POWER MODULE 240
Version: B01
Serial No.: XAA914-006166

Technical Information

• Input Voltage: 3AC 380-480 V
• Input Rated Current: 7.6 A
• Input Frequency: 50/60 Hz
• Output Voltage: 3AC 0-380-480 V
• Output Rated Current: 5.9 A
• Output Power: 2.2 kW
• Protection Class: IP20
