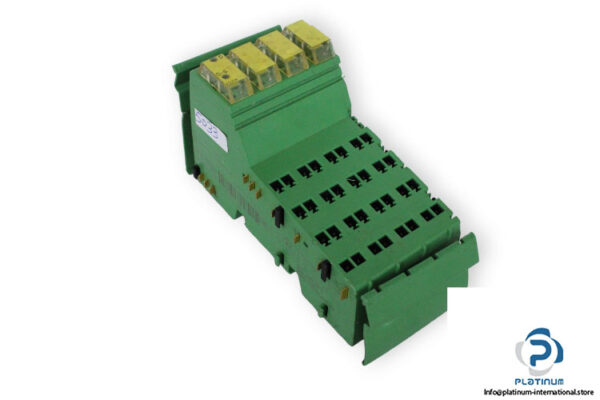

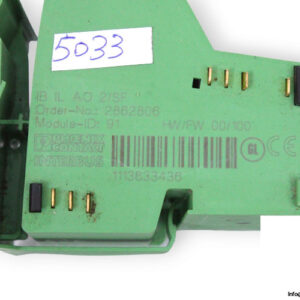

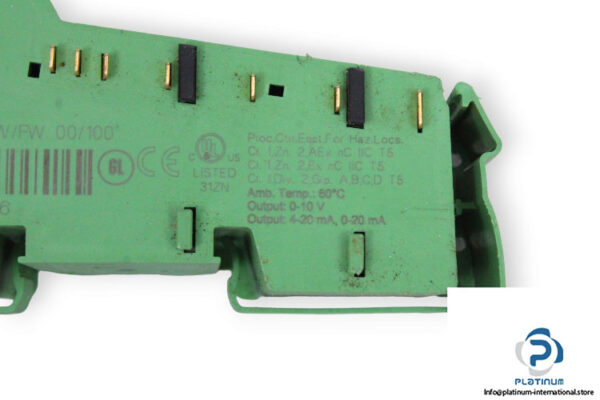

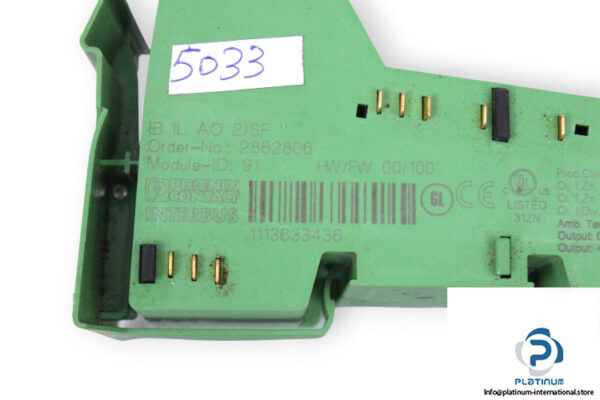

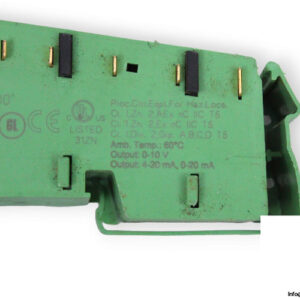

PHOENIX CONTACT IB IL AO 2/SF INLINE TERMINAL

The Phoenix Contact IB IL AO 2/SF is a high-performance analog output inline terminal designed for industrial automation applications. It provides precise signal conversion with 16-bit resolution and features short-circuit protection for reliable operation.

Manufacturer: Phoenix Contact
Type: Inline Terminal
Model: IB IL AO 2/SF
Part No.: 2862806

Technical Information

• Supply Voltage: 24 V DC
• Supply Voltage Range: 19.2 V DC / 30 V DC
• Output Type: Analog outputs
• Number of Outputs: 2
• D/A Conversion Time: < 100 µs
• D/A Converter Resolution: 16 bit
• Protective Circuit: Short-circuit protection of outputs
• Representation of Output Values: 16 bits (15 bits + sign)
• DAC Resolution: 16 bit
• Process Data Update: < 1 ms
• Current Output Signal: 0 mA / 20 mA / 4 mA / 20 mA
• Load/Output Load Current Output: > 500 Ω
• Voltage Output Signal: 0 V / 10 V
• Dimensions: 48.8 x 119.8 x 71.5 mm
