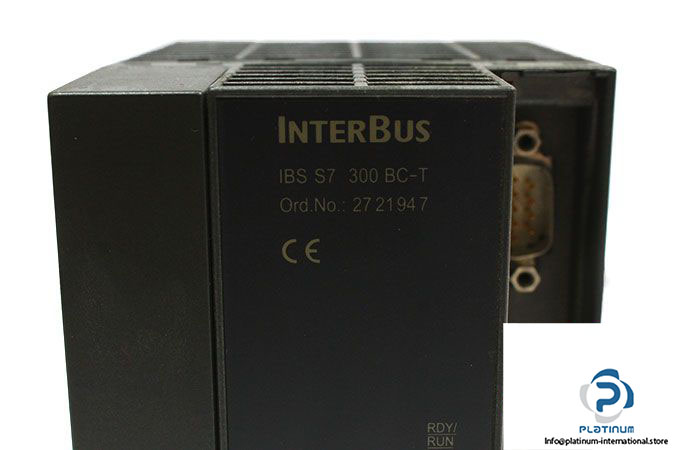

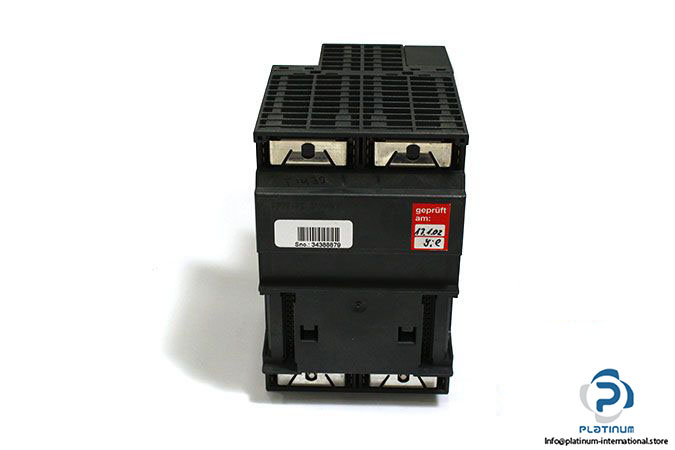

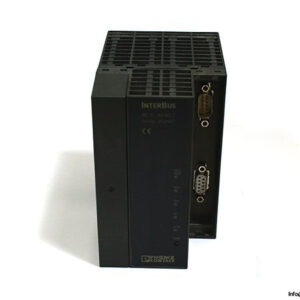

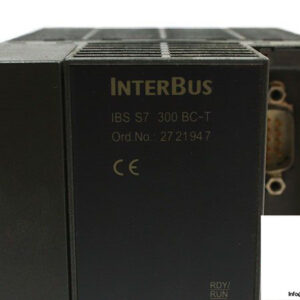

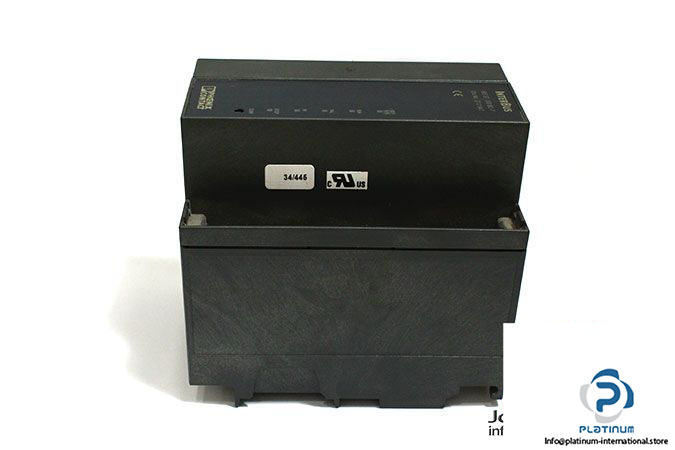

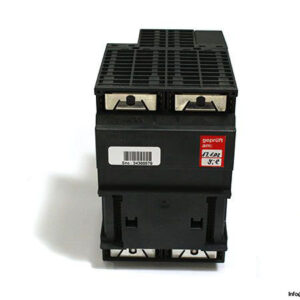

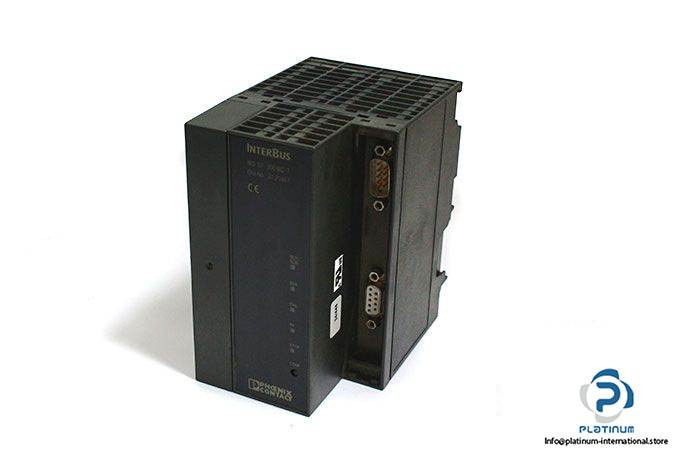

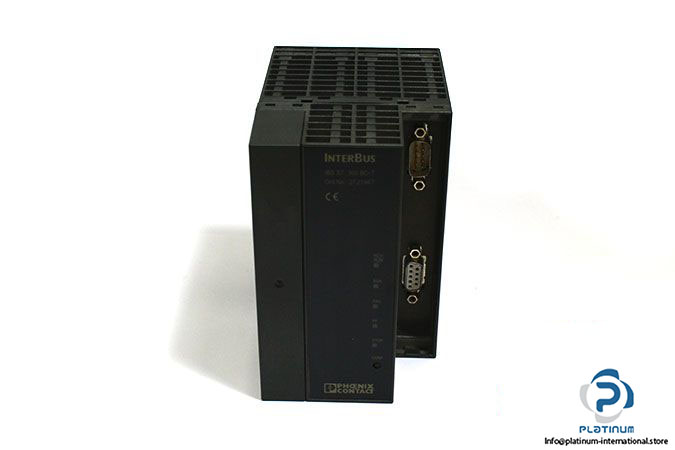

PHOENIX CONTACT IBS S7 300 BC-T CONTROLLER BOARD

The IBS S7 300 BC-T from Phoenix Contact is a highly reliable controller board designed for seamless coupling of INTERBUS systems to Siemens SIMATIC® S7-300 control units. This interface controller is ideal for industrial automation applications, offering high-speed communication and robust data processing.

Manufacturer: PHOENIX CONTACT
Type: CONTROLLER BOARD
Model: IBS S7 300 BC-T
Order No.: 27 21 94 7

Technical Information

• Applications: Coupling of INTERBUS to SIMATIC® S7-300 control systems
• Compatible SIMATIC® S7-300 Types: CPU 312 to 318
• Control System: SIMATIC® S7-300 I/O bus
• Interbus: Remote bus, 9-pos. D-SUB female connector
• Current Consumption: 350 mA at 5 V (typical)
• Monitored Function: INTERBUS
• Power Loss: 1.75 W (typical)
• Number of Devices Supported: 256 (254 remote bus devices)
• Process Data Inputs: 240 bytes (1920 bits)
• Process Data Outputs: 240 bytes (1920 bits)
• Operating Temperature: 0 / 60°C
• Permissible Air Pressure (Operation): 860 hPa to 1080 hPa
• Permissible Air Pressure (Storage/Transport): 660 hPa to 1080 hPa
• Dimensions: 80 x 125 x 110 mm
