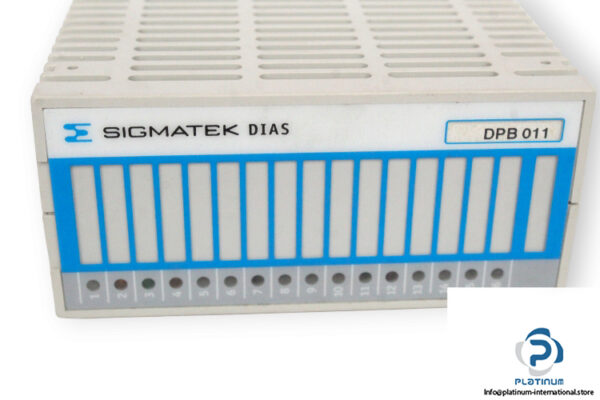

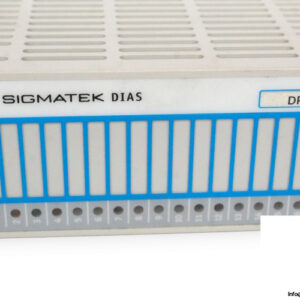

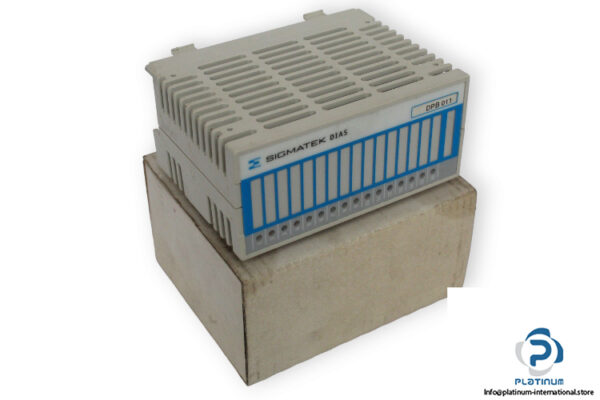

Manufacture: Sigmatek
Type: Profibus DP master module
Model: DPB011

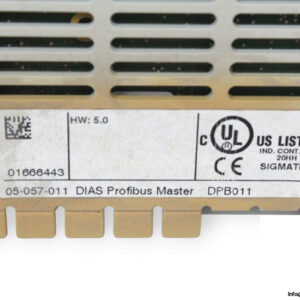

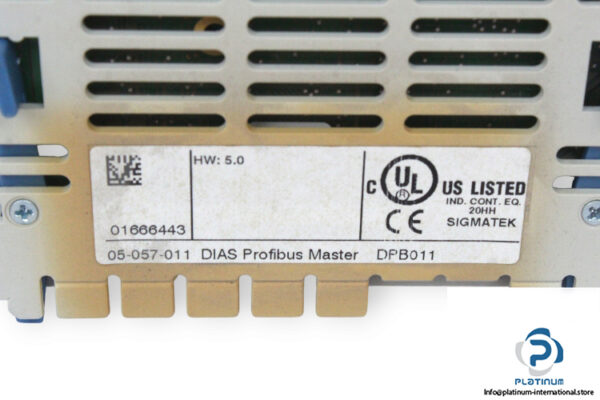

Art. No.: 05-057-011

Field bus: Profibus DP master
Memory: dual ported RAM 2Kbyte
Maximum length for I/O data: 512 Byte
Profibus interface: RS 485 max. baud rate 12 Mbaud
Diagnostic interface: RS 232 max. baud rate 9600 baud
Current drawn at the DIAS bus (I/ O/ P module supply): maximum 500 mA
Connection technique: 9-pole D-Sub socket, Profibus interface, 9-pole D-Sub plug , Profibus diagnosis
Operating temperature: 0 … + 60 °C
Dimensions: 80 x 93 x 98 mm
