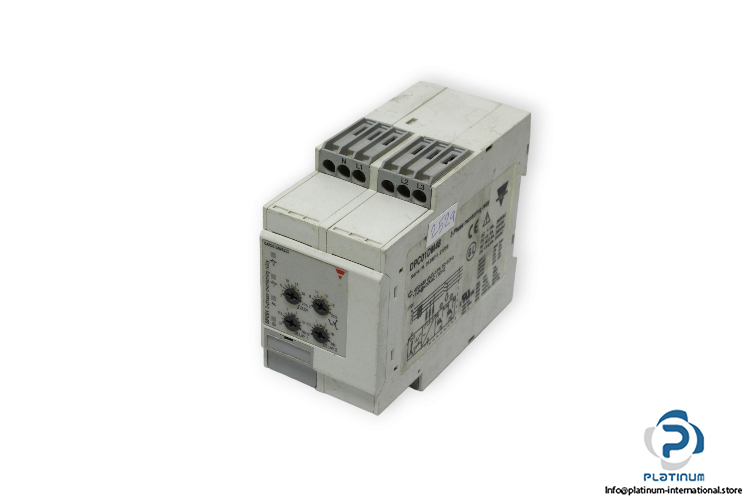

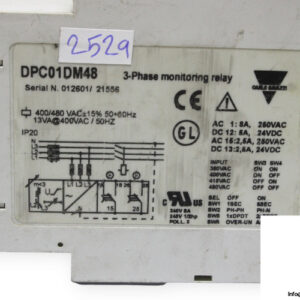

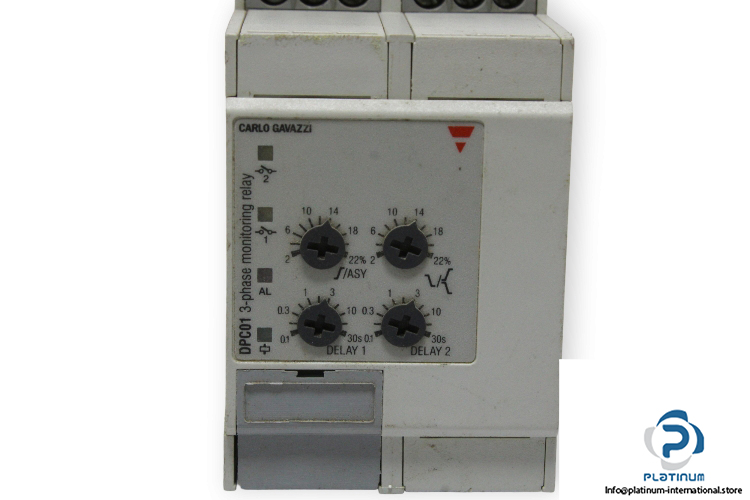

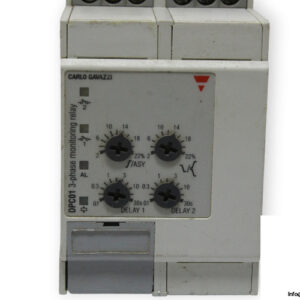

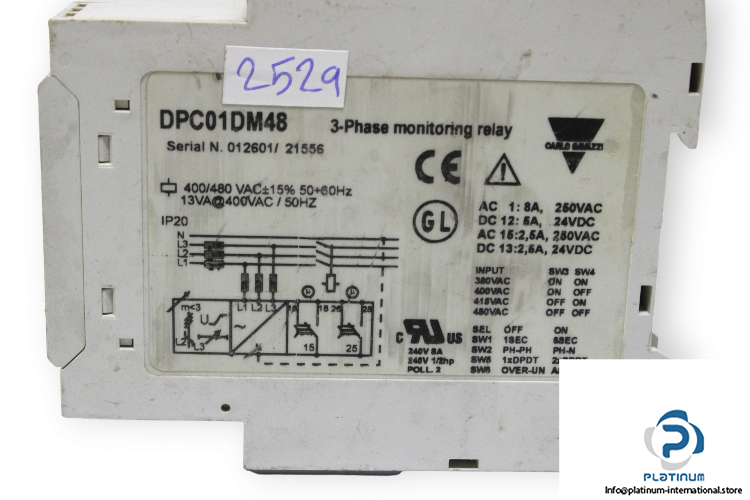

Manufacturer: Carlo Gavazzi

Type: 3-Phase Monitoring Relay

Model: DPC01DM48

Rated operational voltage: 400/480 VAC ±15%

Frequency: 50/60 Hz

Rated operational power: 13 VA @ 400 V AC / 50 Hz

Output contact: 2 Changeover contacts (Single pole double through)

Operating Temperature: @Max. voltage, 50 Hz (-20 … +60 °C) / @ Max. voltage, 60 Hz (-20 … +50°C)

Degree of protection: IP20

Dimensions: 45 x 80 x 99.5 mm
