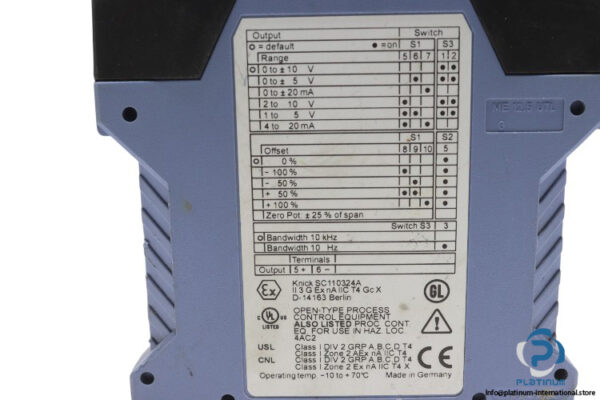

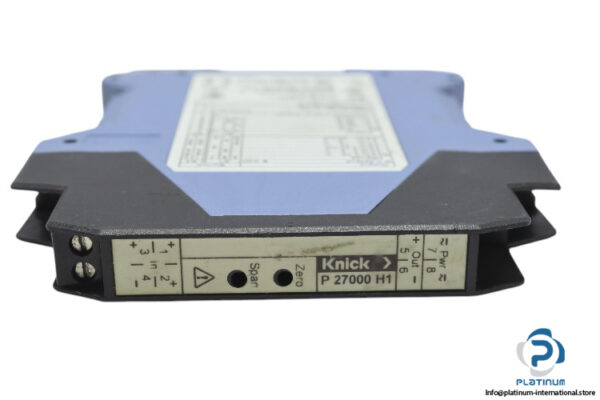

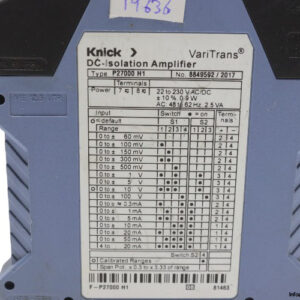

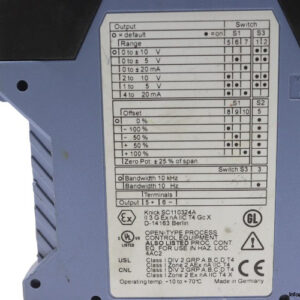

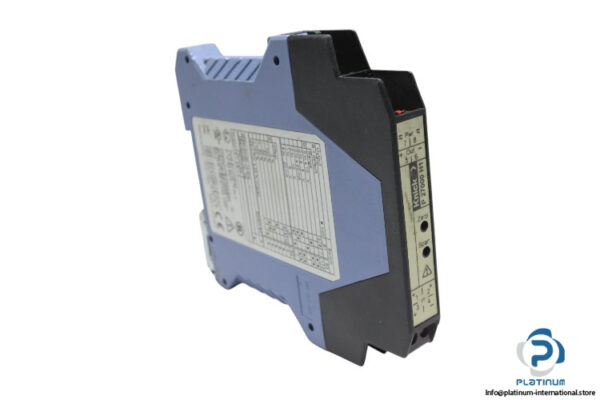

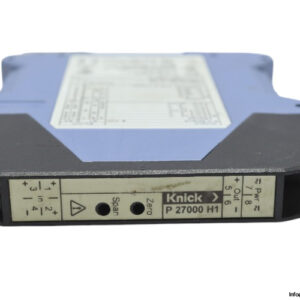

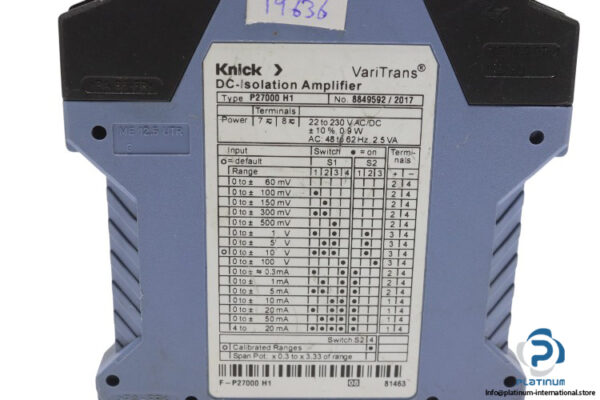

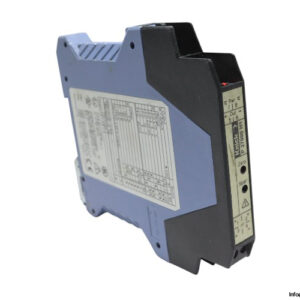

Knick P27000 H1 DC-Isolation Amplifier
The Knick P27000 H1 DC-Isolation Amplifier is a high-performance signal conditioning device designed for industrial applications requiring precise electrical isolation. With a wide power supply range and multiple output options, it ensures reliable signal transmission and protection in automation systems.
- Manufacturer: Knick
- Type: DC-Isolation Amplifier
- Model: P27000 H1
- Part No.: 8849592
Technical Information
- Power Supply: 22 to 230 V AC/DC
- Frequency: 48 to 62 Hz, 2.5 VA
- Output: 0 to 10 V, 0 to 20 mA, 4 to 20 mA
- Power Consumption: 0.9 W
- Galvanic Isolation: 3-port isolation between input, output, and power supply
- Protection Degree: IP20
- Ambient Temperature: -10 to +70°C
- Dimensions: 12.5 x 111 x 99 mm
