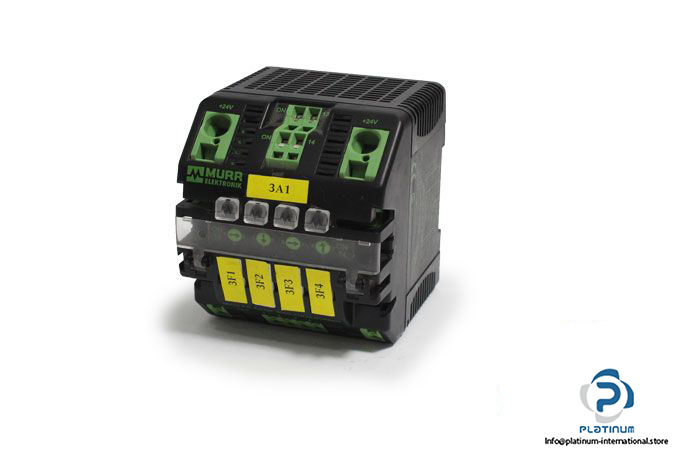

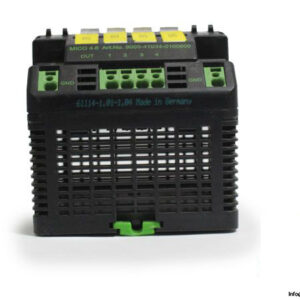

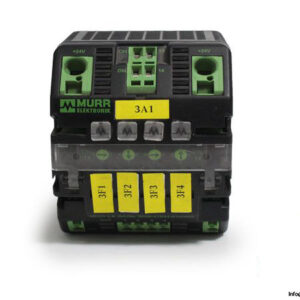

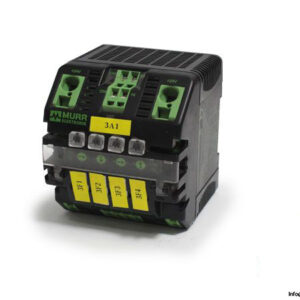

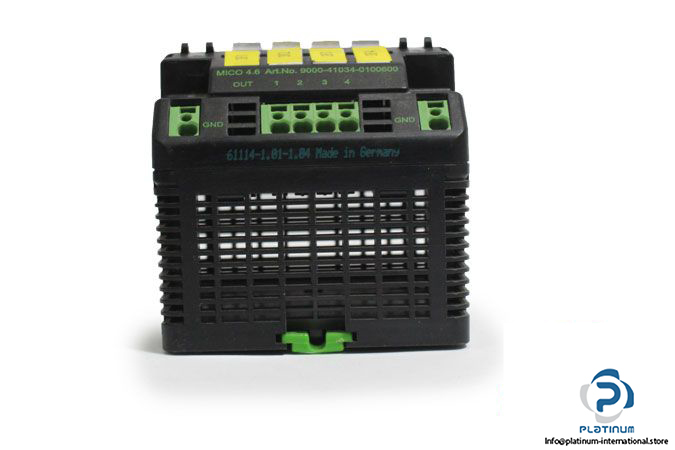

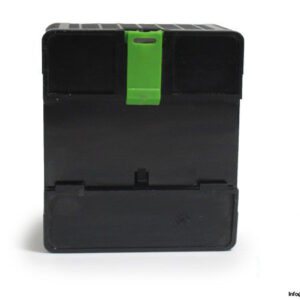

Manufacturer: MURR ELEKTRONIK

Type: ELECTRONIC CIRCUIT PROTECTION, 4 CHANNELS

Model: MICO 4.6

Article No.: 9000-41034-0100600

Operating Voltage: 24 V DC (18…30 V DC)

Current Adjustment: 1, 2, 4, 6 A

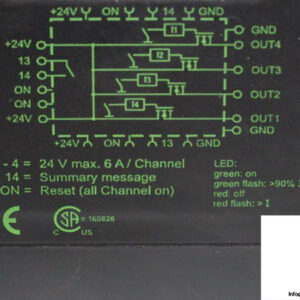

Control Inputs:

Input Voltage (ON): 10…30 V DC

Impulse Length (ON): min. 20 ms

Input Terminals: 2 X 16 mm²

Control Outputs:

Group Alarm Output: potential free 30 V AC/DC, 100 mA

Output Terminals: per output 1 X 4 mm²

Dimensions: 90 X 70 X 80 mm

Temperature Range: 0 … +55 °C

Connection: Spring clamp terminals

Weight: 0.191 Kg
