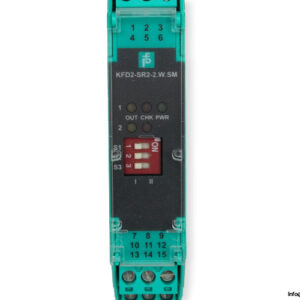

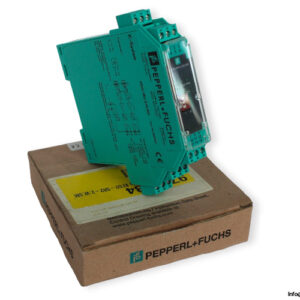

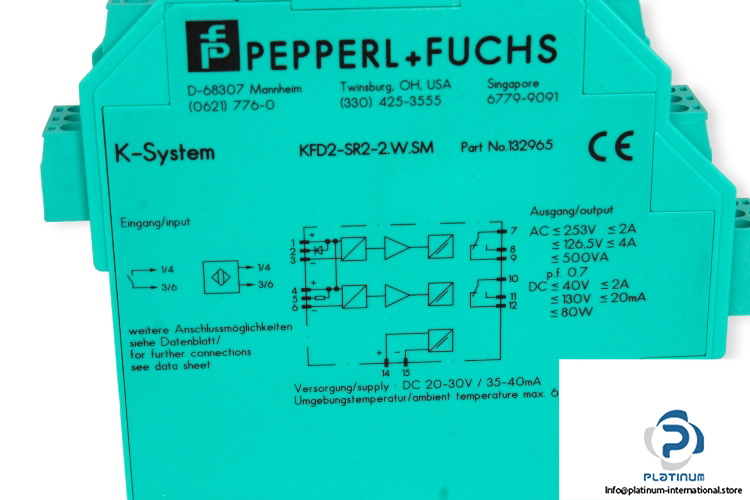

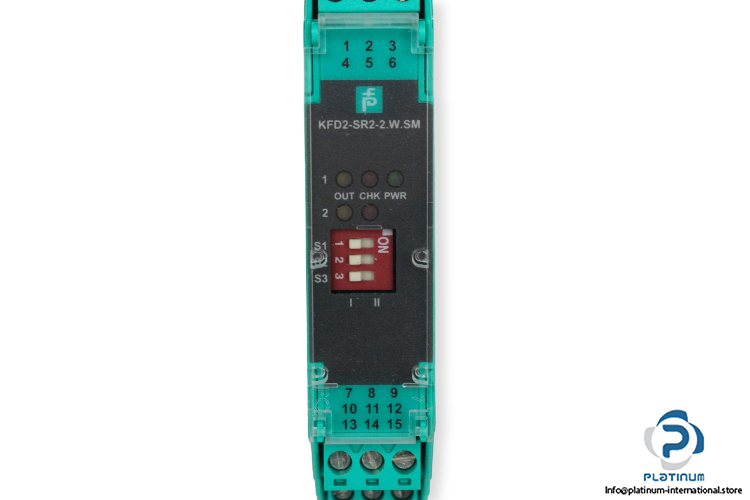

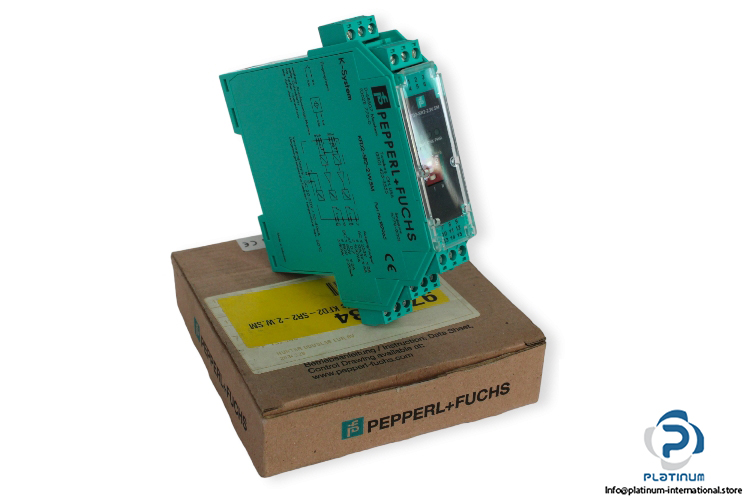

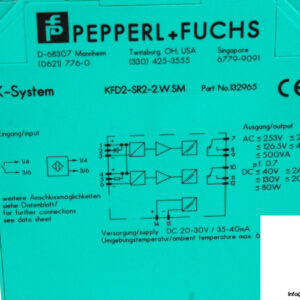

Manufacturer: Pepperl+Fuchs

Type: Standstill and Rotational Direction Monitor

Model: KFD2-SR2-2.W.SM

Part No.: 132965

Rated operational voltage: 24 V DC (20 … 30 V DC)

Current: 35 … 40 mA

Power consumption max: 1.5 W

Control input: sensor power supply approx. 8.2 V

Output

Minimum switch current: 2 mA / 24 V DC

Contact loading: 253 V AC/2 A, 126.5 V AC/4 A (500 VA), 40 V DC/2 A,130 V DC/ 20 mA (80 W) resistive load



Connection: screw terminals

Ambient temperature: -20 … +60°C

Dimensions: 20 x 119 x 115 mm

Protection Degree: IP20
