Phoenix Contact MCR-R/I-4-V-DC Potentiometer Position Indicator Transducer
The Phoenix Contact MCR-R/I-4-V-DC is a reliable potentiometer position indicator and resistance transducer designed for accurate signal conversion from resistance to current. Built in a compact green DIN rail housing, it ensures precision, stability, and durability in industrial automation and control systems.
Manufacturer: Phoenix Contact
Type: Potentiometer Position Indicator Transducer / Resistance Transducer
Model: MCR-R/I-4-V-DC
Art. No.: 27 69 65 3 / 2769653
Series: MCR
Technical Information

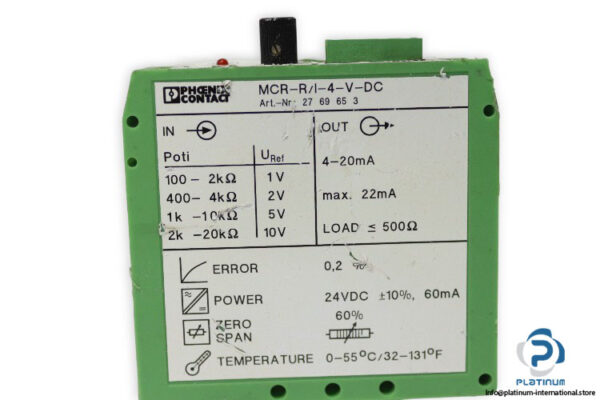

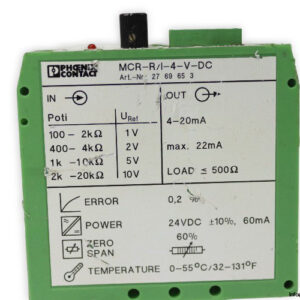

- Input (Resistance / Potentiometer):
- 100 to 2 kohm / Uref 1 V
- 400 to 4 kohm / Uref 2 V
- 1 k to 10 kohm / Uref 5 V
- 2 k to 20 kohm / Uref 10 V
- Output (Current Signal):
- Standard output: 4 to 20 mA
- Maximum output current: 22 mA
- Maximum load: less than 500 ohms
- Supply Voltage: 24 V DC
- Current Consumption: Approx. 60 mA
- Signal Conversion: Resistance to Current (linear)
- Performance: Error: 0.2 %
- Minimum Potentiometer Use for ZERO/SPAN Alignment: 60 %
- Temperature Coefficient: 60 ppm/K
- Operating Temperature: -25 to +80 °C
- Working Temperature Range: 0 to 55 °C
- Protection Degree: IP20

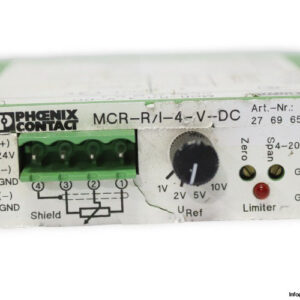

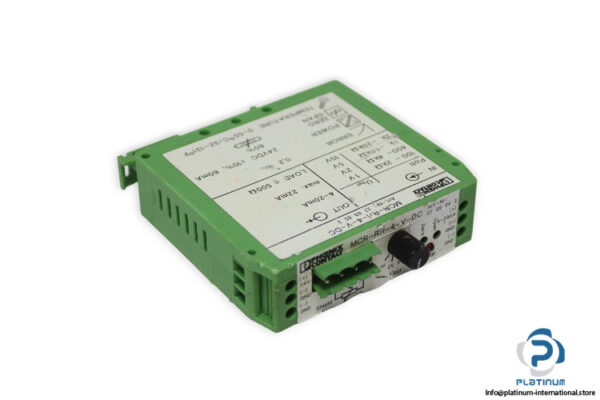

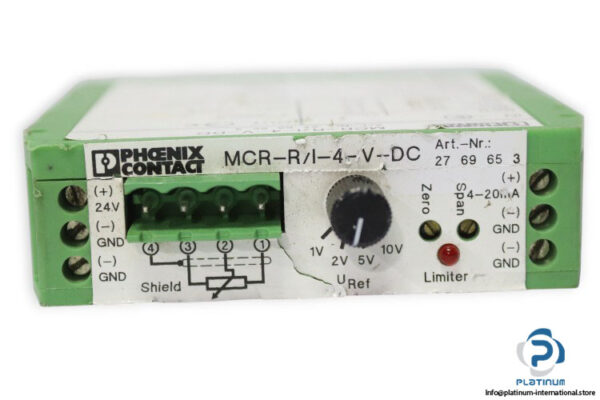

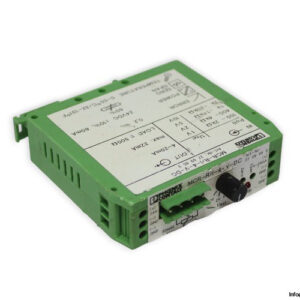

- Housing: Compact green DIN rail mount housing

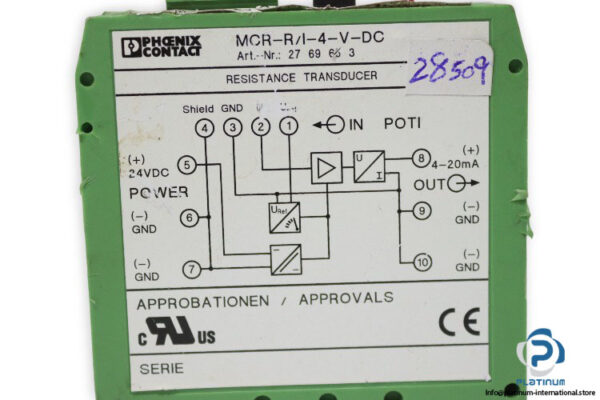

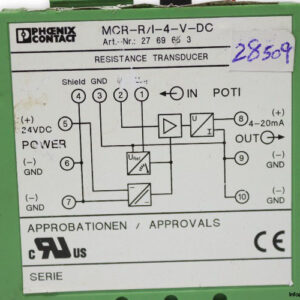

- Connection: Screw terminals for power, input, and output
- Dimensions (W x H x D): 22.5 x 79 x 100 mm
