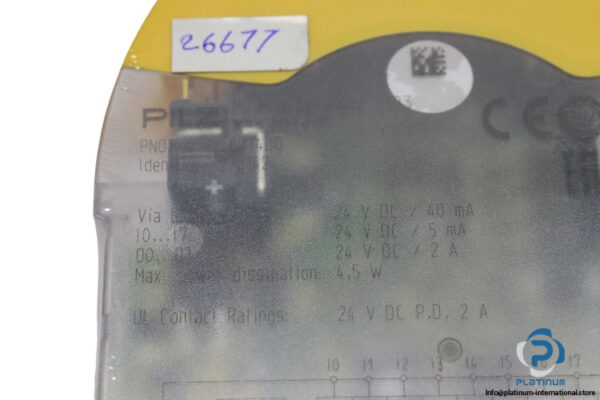

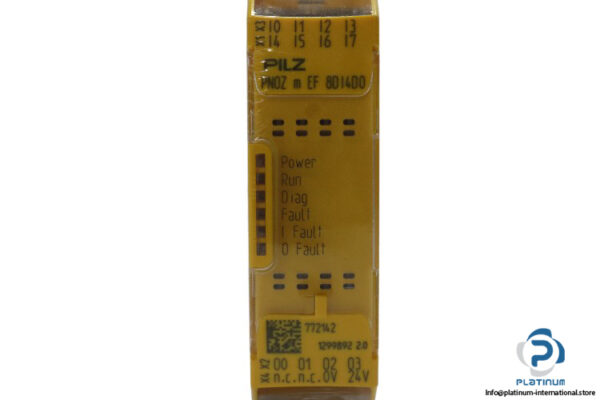

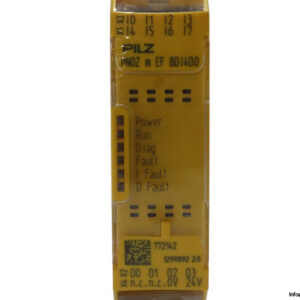

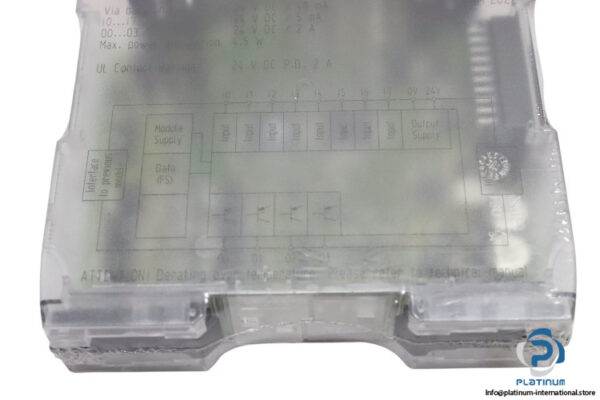

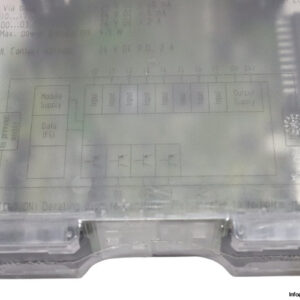

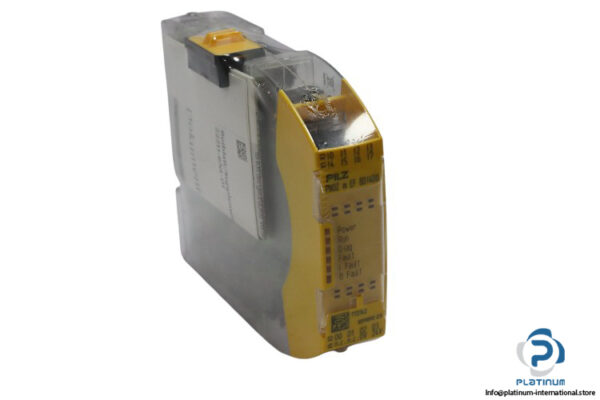

PILZ PNOZ M EF 8DI4DO Safety Relay

The PILZ PNOZ M EF 8DI4DO (Part No. 772142) is an advanced safety relay module designed for industrial automation systems requiring reliable safety monitoring. With 8 digital inputs and 4 outputs, it ensures efficient signal control, high switching capabilities, and consistent performance across a wide temperature range.

• Manufacturer: PILZ
• Type: Safety Relay
• Model: PNOZ M EF 8DI4DO
• Part No.: 772142

Technical Information:

• Supply Voltage: 24V DC
• Current Load: 8.0 A
• Current Consumption: 39 mA
• Power Consumption: 1.0 W
• Inputs:
• Number: 8
• Input Voltage: 24 V DC
• Input Current: 5 mA
• Outputs:
• Number: 4
• Switching Capability Voltage: 24 V
• Output: 2.00 A
• Ambient Temperature: -25 to 70 °C
• Degree of Protection: IP54 / IP20 / IP20
• Dimensions (H x W x D): 101.4 x 22.5 x 120.0 mm
