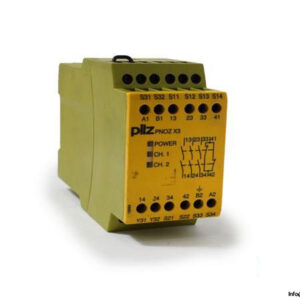

Manufacturer: PILZ

Type: SAFETY RELAY

Model: PNOZ X3 230VAC 24VDC 3N/O 1N/C 1SO

Part No.: 774318

Supply Voltage: 230 VAC, 24 VDC

Power Consumption: 5 VA, 2.5 W

Frequency: 50-60 Hz

Terminal Style: fixed

Terminal Type: Screw terminal

Current DC, AC: Max. 6 A, 5 A

Ambient Temperature: -20 … +55 °C

Dimension: 121 X 45 X 87 mm
