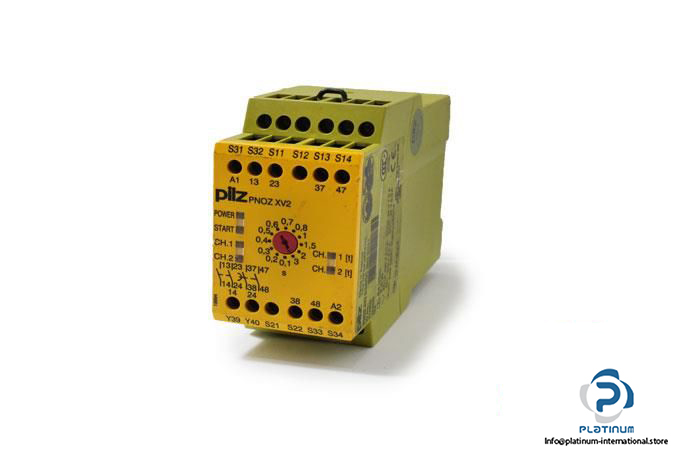

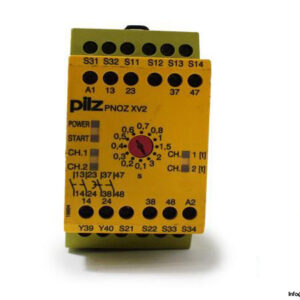

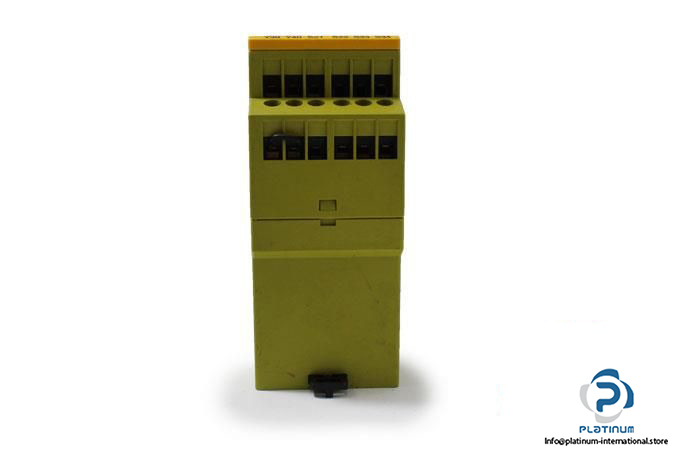

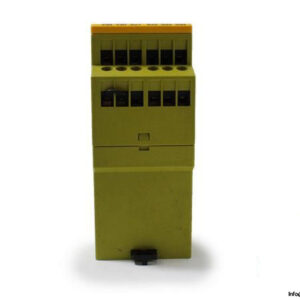

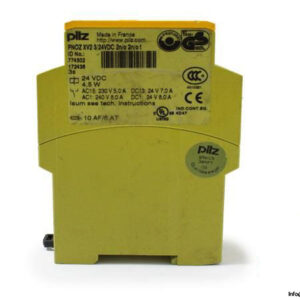

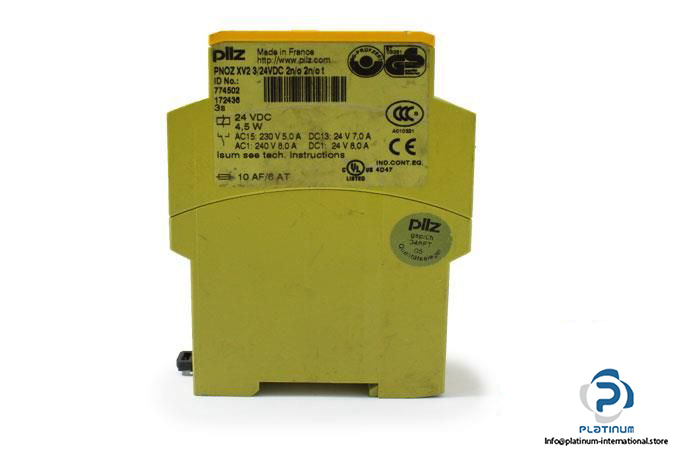

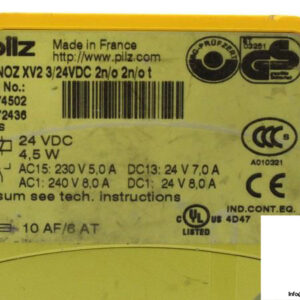

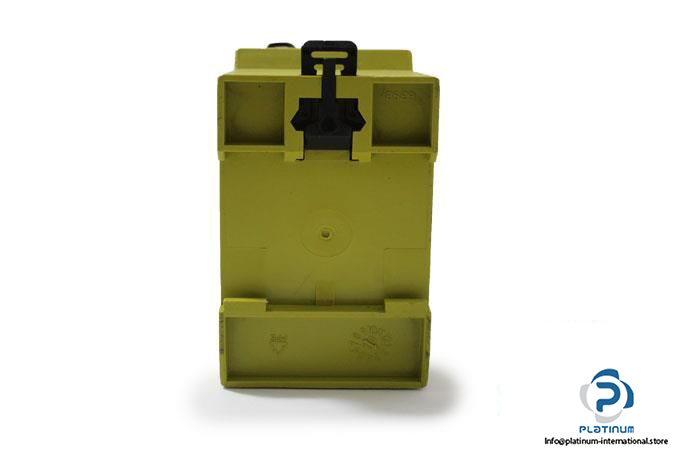

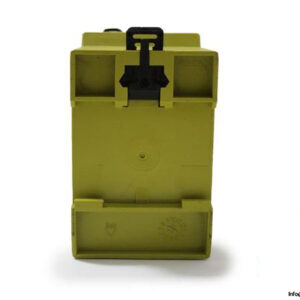

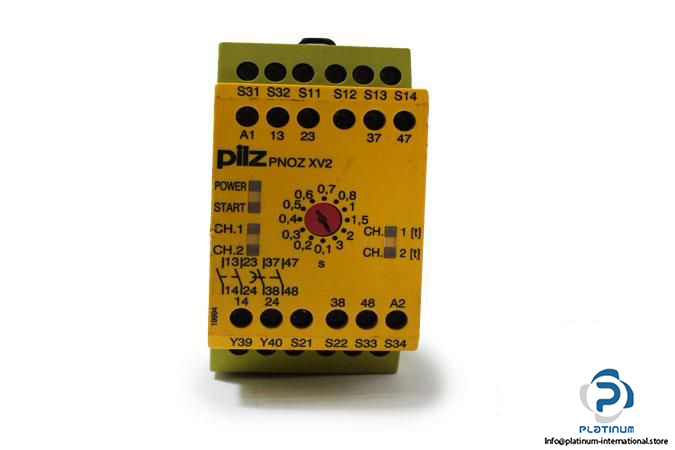

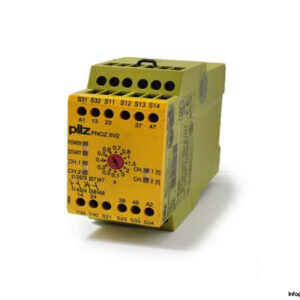

Pilz PNOZXV23/24VDC2N/O2N/OT Safety Relay

The Pilz PNOZXV23/24VDC2N/O2N/OT Safety Relay, with ID No. 774502 172436, is a versatile safety solution designed for various industrial safety applications.

Application Options: Safety gate monitoring, Instantaneous E-STOP monitoring, Limit switch, Delayed E-STOP monitoring

• Manufacturer: Pilz
• Type: Safety Relay
• Model: PNOZXV23/24VDC2N/O2N/OT

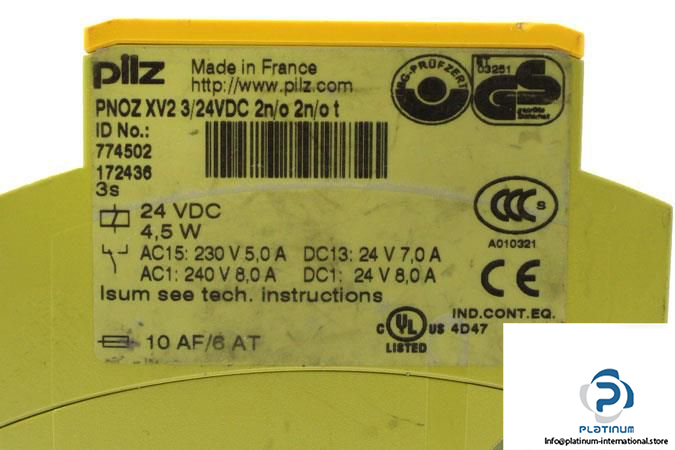

• ID No.: 774502 172436
• Supply Voltage: 24 V DC
• Power Consumption: 4.5 W
• Number of Instantaneous Safety Contacts: 2
• Number of Delayed Safety Contacts: 2
• Contact Rating: 230 V AC, 5 A / 240 V AC, 8 A / 24 V DC, 7/8 A
• Fuse: 10 AF / 6 AT
• Terminal Style: Fixed
• Terminal Type: Screw Terminal
• Standards: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
• Max. Current at DC13 (6 cycles/min): 7.0 A
• Max. Current at AC15: 5.0 A
• Time: 3s
• Operating Temperature: -10 / 55 °C
• Dimensions: 45 x 87 x 121 mm

With its robust design and advanced safety features, the Pilz PNOZXV23/24VDC2N/O2N/OT Safety Relay is the ideal choice for ensuring safety compliance in demanding industrial applications.
