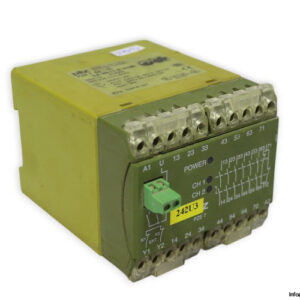

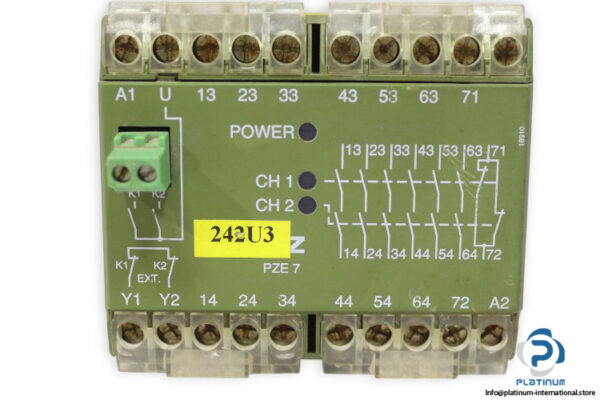

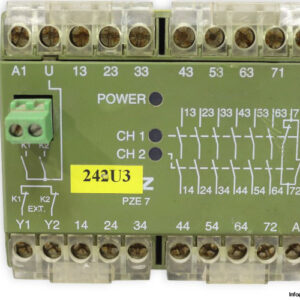

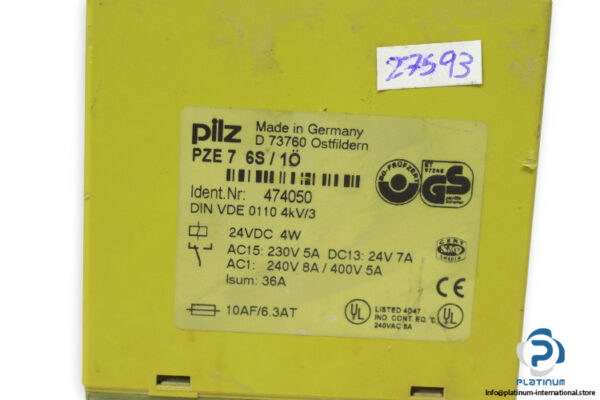

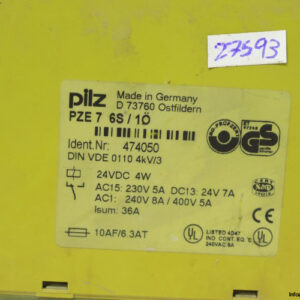

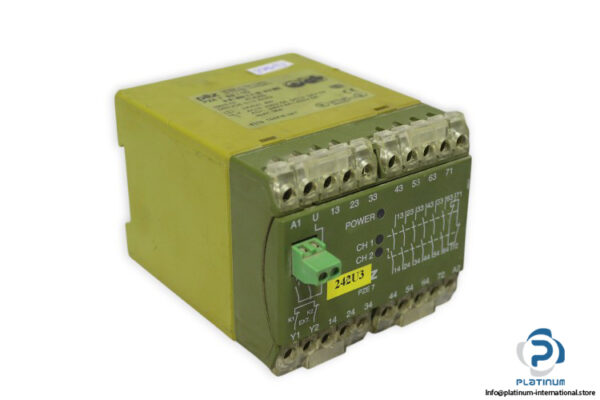

PILZ PZE 7 6S/10 SAFETY RELAY

pilz-PZE-7-6S_10-safety-relay-(used)
pilz-PZE-7-6S_10-safety-relay-(used)-1
pilz-PZE-7-6S_10-safety-relay-(used)-2
pilz-PZE-7-6S_10-safety-relay-(used)
pilz-PZE-7-6S_10-safety-relay-(used)-1
pilz-PZE-7-6S_10-safety-relay-(used)-2

PILZ PZE 7 6S/10 SAFETY RELAY

SAFETY RELAY

Industrial-grade PILZ safety relay PZE 7 6S/10 with 24V DC input, 6 NO / 1 NC outputs, and robust contact ratings for control applications.

SKU: 1077701 Category: Tags: , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

PILZ PZE 7 6S/10 SAFETY RELAY

The PILZ PZE 7 6S/10 is a highly reliable safety relay designed for demanding industrial safety applications. Engineered to meet rigorous control standards, it ensures the safe switching of electrical signals and meets compliance with modern safety systems.

Manufacturer: PILZ
Type: Safety Relay
Model: PZE 7 6S/10
Part No.: 474050 / 0110 4KV/3

Technical Information

  • Rated Voltage: 24V DC
  • Rated Power: 4W
  • Contact Ratings:
    • AC15: 230V 5A
    • DC13: 24V 7A
    • AC1: 240V 8A / 400V 5A
  • Output Contacts: 6 NO / 1 NC
  • Ambient Temperature Range: -10 / 55 °C
Weight0,5 kg
