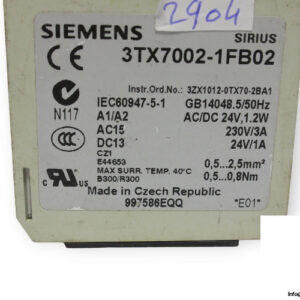

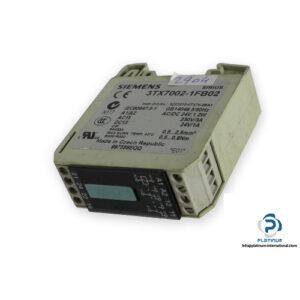

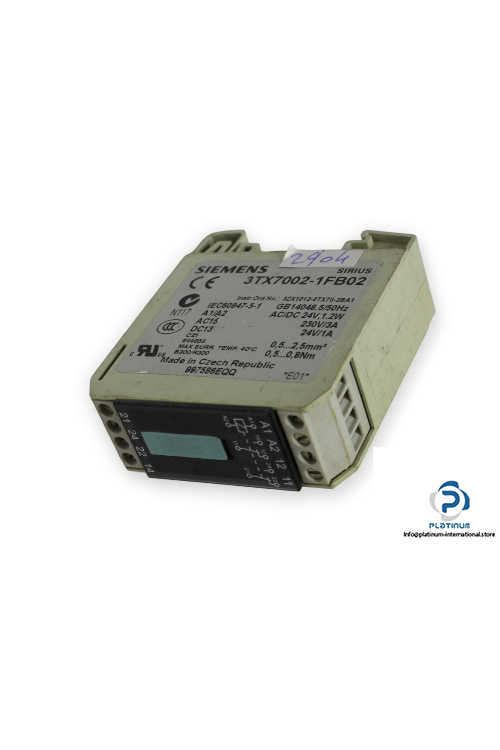

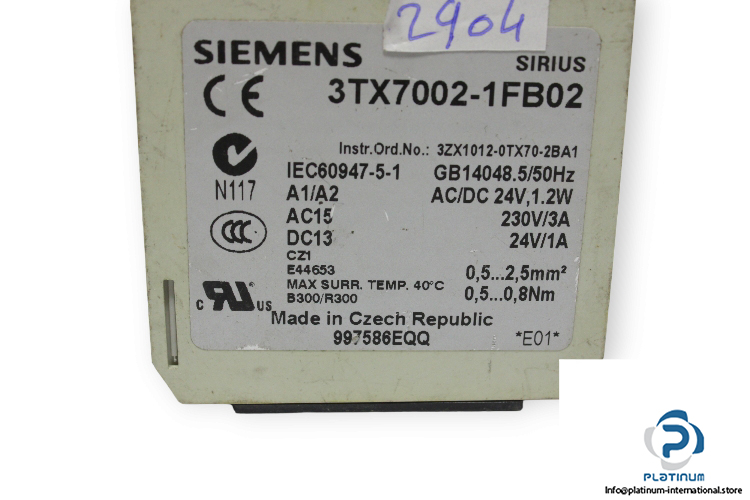

Manufacturer: Siemens
Type: Relay
Model: 3TX70021FB02
Successor: 3RQ2000-1CW01
Family: SIRIUS
Voltage: 24 V AC/DC
Power consumption: 1.2 W

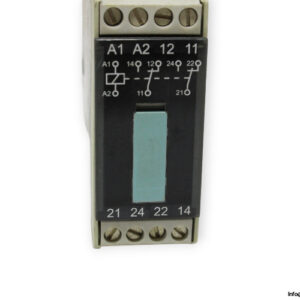

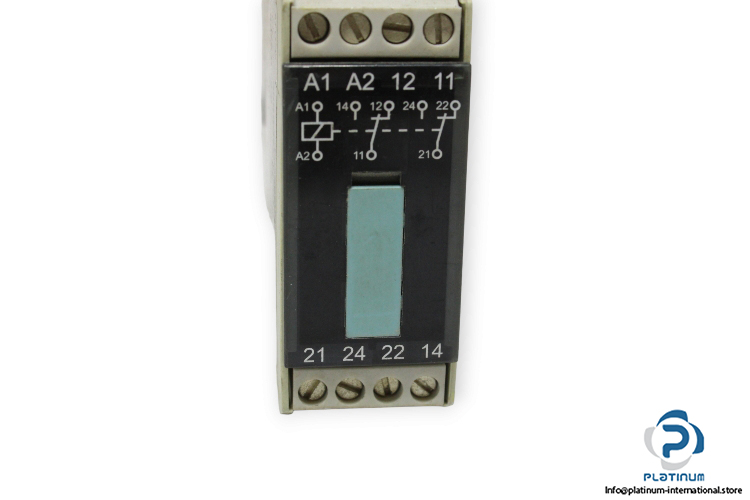

Contacts type: 2 Changeover contacts (Single pole double through)
Contact Material: gold-plated contact
Contact Voltage: 230 V AC/ 24 V DC
Contact Current: 3 A (AC)/ 1 A (DC)
operational current of auxiliary contacts: 0.1 A (DC)
Operating Temperature: -25 … +60 °C
Degree of protection: IP20
997588EQQ
