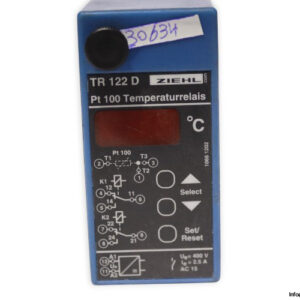

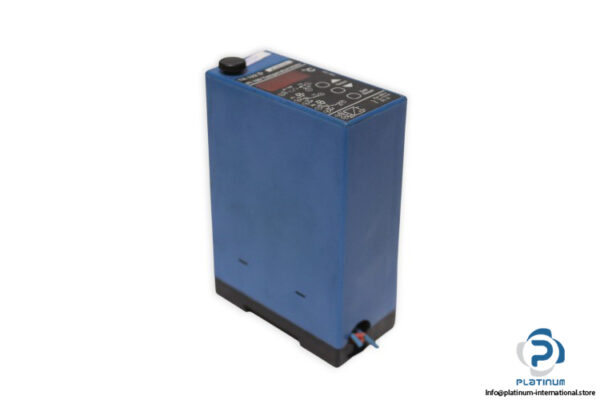

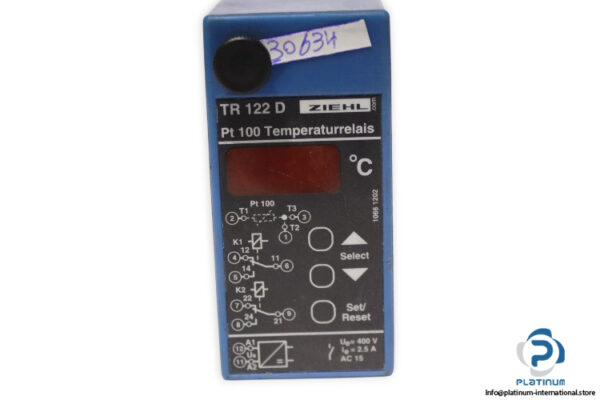

ZIEHL TR 122 D Temperature Relay
The ZIEHL TR122D is a precision temperature relay engineered for industrial monitoring and control. It provides accurate measurement across a wide temperature range with reliable protection and output options, making it ideal for demanding applications.
Manufacturer: ZIEHL
Type: Temperature Relay
Model: TR 122 D
Order No.: T 224130

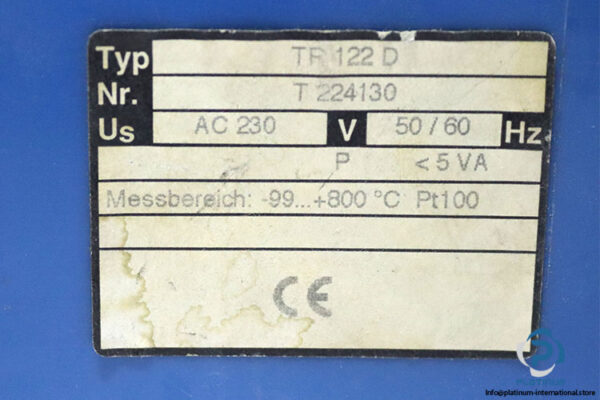

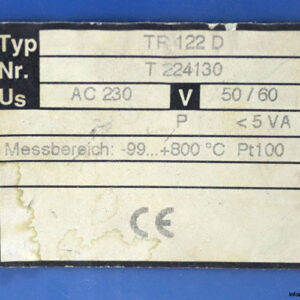

Technical Information
- Temperature Range: -199 … 850 °C
- Temperature Sensor: Pt100 (RTD)
- Supply Voltage: 230 V AC
- Power Max.: 5 VA
- Frequency: 50 / 60 Hz
- Contact: 2 Change-Over (CO)
- Analog Output: 0/4 / 20 mA
- Protection Class: IP30 / IP20
- Ambient Temperature: -20 … 55 °C
- Dimensions: 82 x 42 x 121 mm
