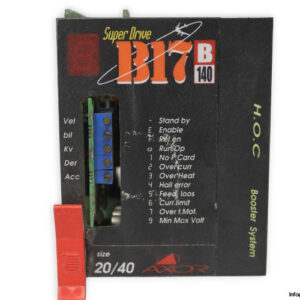

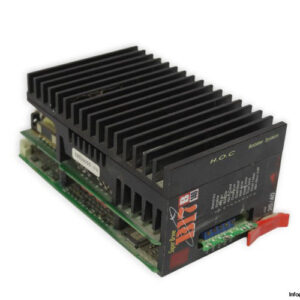

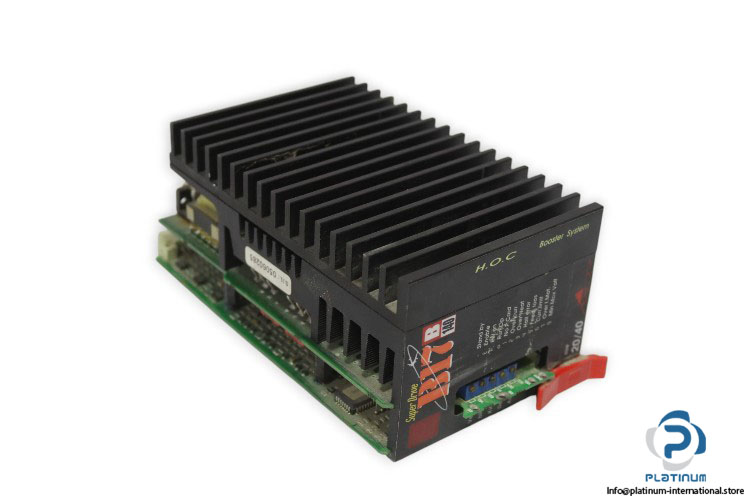

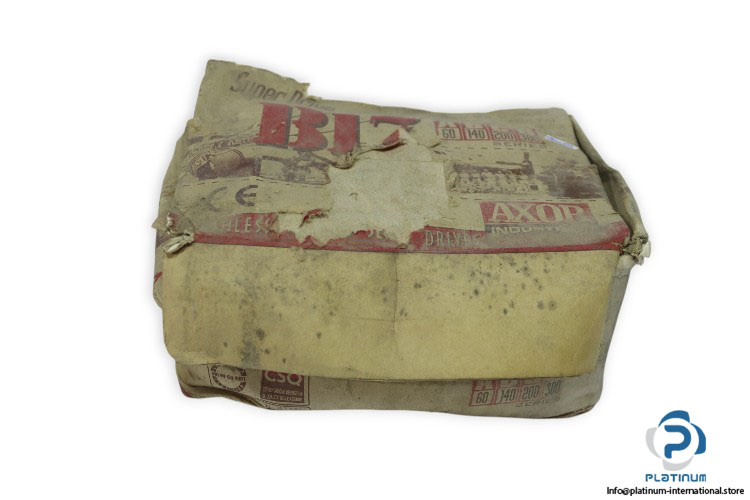

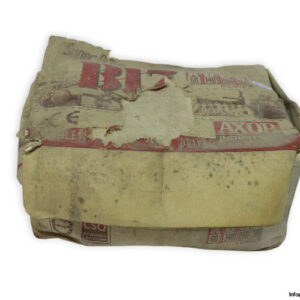

Axor B17-B140-20/40-B-S-A-849/EC-RD AC Brushless Servo Drive

The Axor B17-B140-20/40-B-S-A-849/EC-RD is a high-performance AC brushless servo drive from the Booster System series. Designed for precise motion control and demanding automation applications, it offers powerful current handling, encoder feedback, and robust protection features.

Manufacturer: Axor
Type: AC Brushless Servo Drive (Booster System)

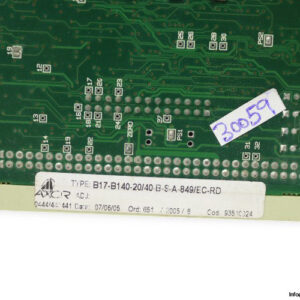

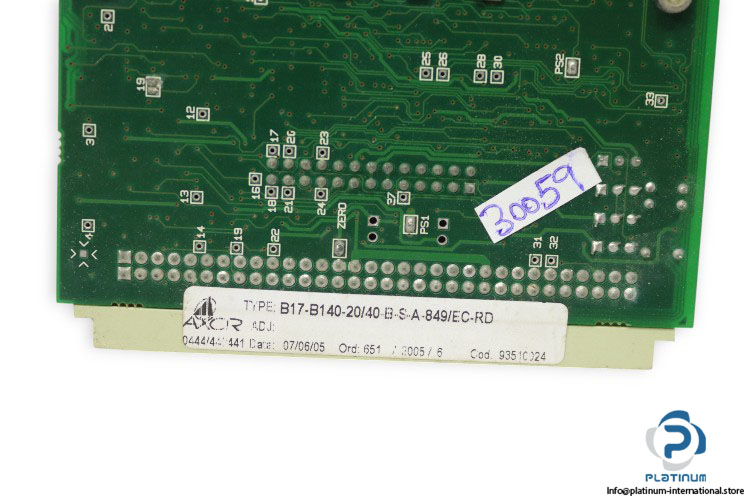

Model: B17-B140-20/40-B-S-A-849/EC-RD
Order: 651 / 2005/ 6
Code: 93510024
S/N: 05060285

Technical information

• Size: 20/40
• Type: A, Analog
• Adjustment Identification Number: 849
• Feedback: EC, Commutation encoder
• Control Mode: RD, Differential reference
• Supply Voltage Range: 52 to 145 VAC
• Operating Frequency: 16 KHz
• Rated Current: 20 Arms
• Peak Current (Arms) x 2 sec: 40
• Supply Line Fuses: 20 A @ 250 V
• Supply (VAC) (3PH): 145 V AC
• Operating Temperature: 0 to 40 °C
• Box: Super Drive B17

Attachment

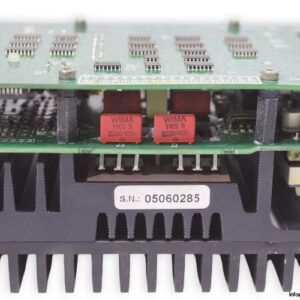

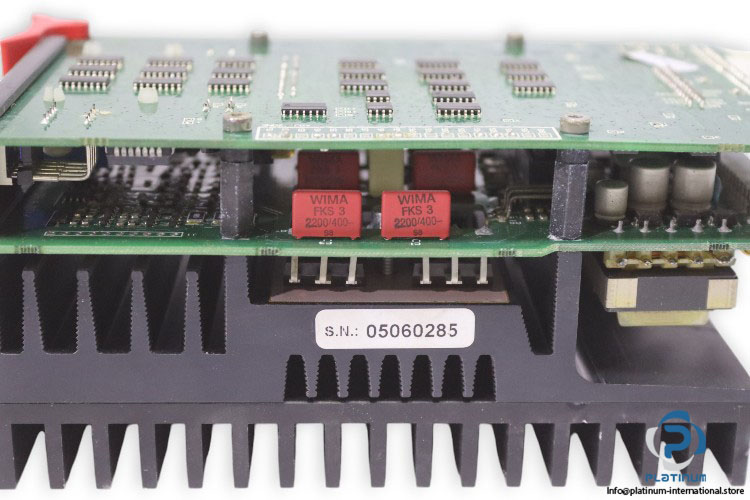

• WIMA FKS 3 2200/400 Capacitor (Pulse Applications)
• Capacitance Range: 1000 µF to 0.22 µF
• Rated Voltages: 100 VDC, 250 VDC, 400 VDC, 630 VDC
• Operating Temperature Range: -55 °C to +105 °C
