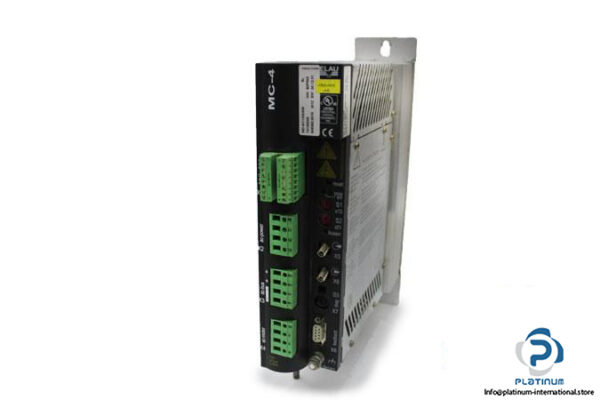

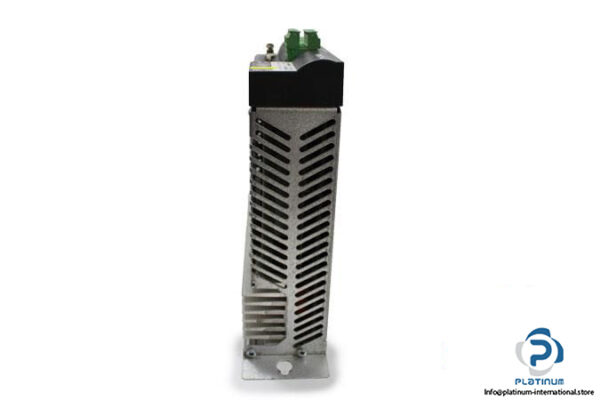

Manufacturer: Elau Schneider Electric

Type: Servo Drive

Model: MC-4 / 11 / 03 / 400

MRN: VDM01U30AQ00

Order No.: 13 13 02 45

Input 1

Voltage Rating: 3 Phase 380…480 V AC

Current: 3.2 A

Frequency: 48…62 Hz

Input 2

Voltage: 24 VDC

Current: 1 A

Output

Voltage Rating: 3 Phase 0…480 V AC

Current: 3 A

Frequency: 0…600 Hz

Peak Power: 5 kW

Ambient Temperature: 5…45 °C

Dimensions: 240 X 66 X 230 mm

Weight: 3.1 Kg
